Articulated cranes
Browse the A and T model families. Catalogue metric specifications and family-labelled diagrams are kept together.
A35
Compact Range · 3 models
A42
Compact Range · 4 models
A60
Compact Range · 4 models
A78
Compact Range · 4 models
A80
Compact Range · 4 models
A80TN
Compact Range · 3 models
A108
Compact Range · 4 models
A128
Compact Range · 6 models
A140
Medium Range · 5 models
A150
Medium Range · 5 models
A150TN
Medium Range · 3 models
A170
Medium Range · 5 models
A200
Medium Range · 5 models
A220
Medium Range · 6 models
A240
Medium Range · 6 models
A300
Medium Range · 6 models
A340
Heavy Duty Range · 6 models
A360
Heavy Duty Range · 6 models
A450
Heavy Duty Range · 6 models
A510
Heavy Duty Range · 6 models
A630
Heavy Duty Range · 5 models
A650
Heavy Duty Range · 5 models
A820
Heavy Duty Range · 3 models
A950
Heavy Duty Range · 7 models
A1150
Heavy Duty Range · 3 models
A1600
Heavy Duty Range · 4 models
T24
T-SERIES · 3 models
T28
T-SERIES · 4 models
A2000
Previously reviewed corrected local page
A3500
Previously reviewed corrected local page
A530
Previously reviewed corrected local page
T-SERIES
T24 model comparison
↔ Scroll horizontally to compare all models.
| Specification | T24.1 | T24.2 | T24.3 |
|---|---|---|---|
| Max. Lifting MomentkN.m | 21.64 | 20.1 | 19.8 |
| Horizontal Outreachm | 2.80 | 4.18 | 5.58 |
| Min. GVWton | 2.8 | 2.8 | 2.8 |
| Max. Pressurebar | 190 | 190 | 190 |
01T24.1
| Max. Lifting MomentkN.m | 21.64 |
|---|---|
| Horizontal Outreachm | 2.80 |
| Min. GVWton | 2.8 |
| Max. Pressurebar | 190 |

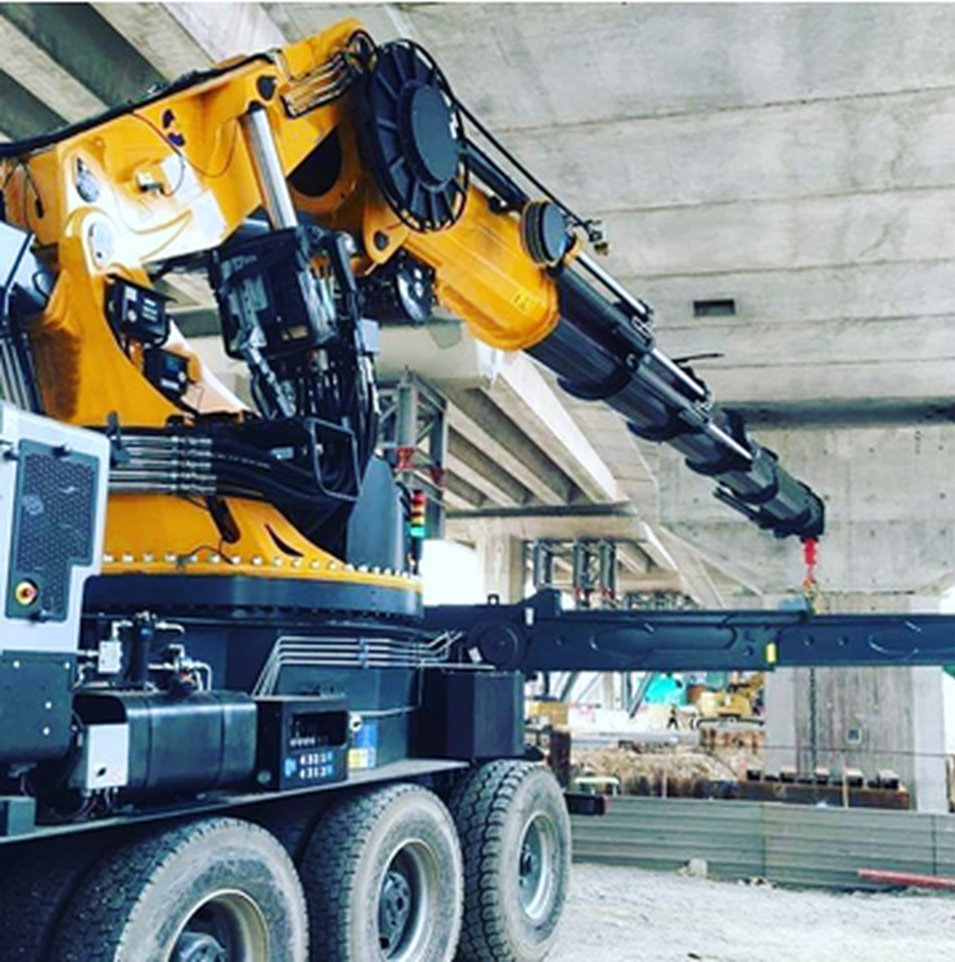

No individual model photograph is assigned. See the articulated crane overview for a product-type reference photograph.
02T24.2
| Max. Lifting MomentkN.m | 20.1 |
|---|---|
| Horizontal Outreachm | 4.18 |
| Min. GVWton | 2.8 |
| Max. Pressurebar | 190 |
No individual model photograph is assigned. See the articulated crane overview for a product-type reference photograph.
03T24.3
| Max. Lifting MomentkN.m | 19.8 |
|---|---|
| Horizontal Outreachm | 5.58 |
| Min. GVWton | 2.8 |
| Max. Pressurebar | 190 |
No individual model photograph is assigned. See the articulated crane overview for a product-type reference photograph.
Catalogue model drawings
T-SERIES
T28 model comparison
↔ Scroll horizontally to compare all models.
| Specification | T28.1 | T28.2 | T28.3 | T28.4 |
|---|---|---|---|---|
| Max. Lifting MomentkN.m | 28.02 | 27.02 | 26.3 | 24.9 |
| Horizontal Outreachm | 2.93 | 4.38 | 5.93 | 7.43 |
| Min. GVWton | 3.5 | 3.5 | 3.5 | 3.5 |
| Max. Pressurebar | 245 | 245 | 245 | 245 |
01T28.1
| Max. Lifting MomentkN.m | 28.02 |
|---|---|
| Horizontal Outreachm | 2.93 |
| Min. GVWton | 3.5 |
| Max. Pressurebar | 245 |
No individual model photograph is assigned. See the articulated crane overview for a product-type reference photograph.
02T28.2
| Max. Lifting MomentkN.m | 27.02 |
|---|---|
| Horizontal Outreachm | 4.38 |
| Min. GVWton | 3.5 |
| Max. Pressurebar | 245 |
No individual model photograph is assigned. See the articulated crane overview for a product-type reference photograph.
03T28.3
| Max. Lifting MomentkN.m | 26.3 |
|---|---|
| Horizontal Outreachm | 5.93 |
| Min. GVWton | 3.5 |
| Max. Pressurebar | 245 |
No individual model photograph is assigned. See the articulated crane overview for a product-type reference photograph.
04T28.4
| Max. Lifting MomentkN.m | 24.9 |
|---|---|
| Horizontal Outreachm | 7.43 |
| Min. GVWton | 3.5 |
| Max. Pressurebar | 245 |
No individual model photograph is assigned. See the articulated crane overview for a product-type reference photograph.
Catalogue model drawings
Specifications are subject to change without prior notice for improvement. Read drawings with the indicated model and operating conditions.
