Dimensions A, B, C and L follow the lettered catalog drawing.
02SFS06Details +
SFS06 specifications
Applicable carrierton
8~13
Dimension Amm
638
Dimension Bmm
1,545
Dimension Cmm
220
Dimension L (in open)mm
1,550
Operating weightkg
730
Weightkg
730
Cylinder oil pressurekg/cm²
150~170
Cylinder setting pressurekg/cm²
190
Flow ratel/min
90~120
Bucketm³
0.33
ToothNumber
SL140-713-00057
Dimensions A, B, C and L follow the lettered catalog drawing.
03SFS08Details +
SFS08 specifications
Applicable carrierton
18~22
Dimension Amm
802
Dimension Bmm
1,938
Dimension Cmm
309
Dimension L (in open)mm
2,220
Operating weightkg
1,430
Weightkg
1,430
Cylinder oil pressurekg/cm²
160~200
Cylinder setting pressurekg/cm²
210
Flow ratel/min
100~150
Bucketm³
0.65
ToothNumber
DX300-71300054A
Dimensions A, B, C and L follow the lettered catalog drawing.
04SFS10Details +
SFS10 specifications
Applicable carrierton
28~32
Dimension Amm
833
Dimension Bmm
2,060
Dimension Cmm
320
Dimension L (in open)mm
2,235
Operating weightkg
1,860
Weightkg
1,860
Cylinder oil pressurekg/cm²
160~210
Cylinder setting pressurekg/cm²
220
Flow ratel/min
130~200
Bucketm³
0.7
ToothNumber
DX300-71300054A
Dimensions A, B, C and L follow the lettered catalog drawing.

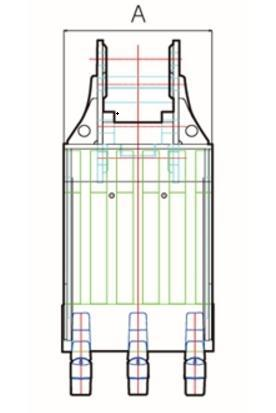

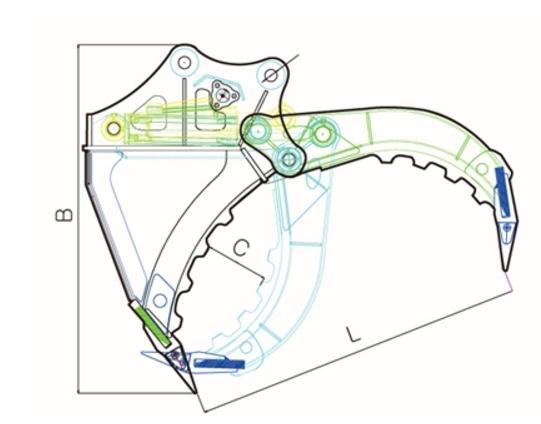

Dimensions & reference drawings
Fixed Stone / Waste Grapple · Common dimension referenceFixed Stone / Waste Grapple · Common dimension reference
Specifications are subject to change without prior notice for improvement. Representative photographs and common drawings do not identify every individual model.
