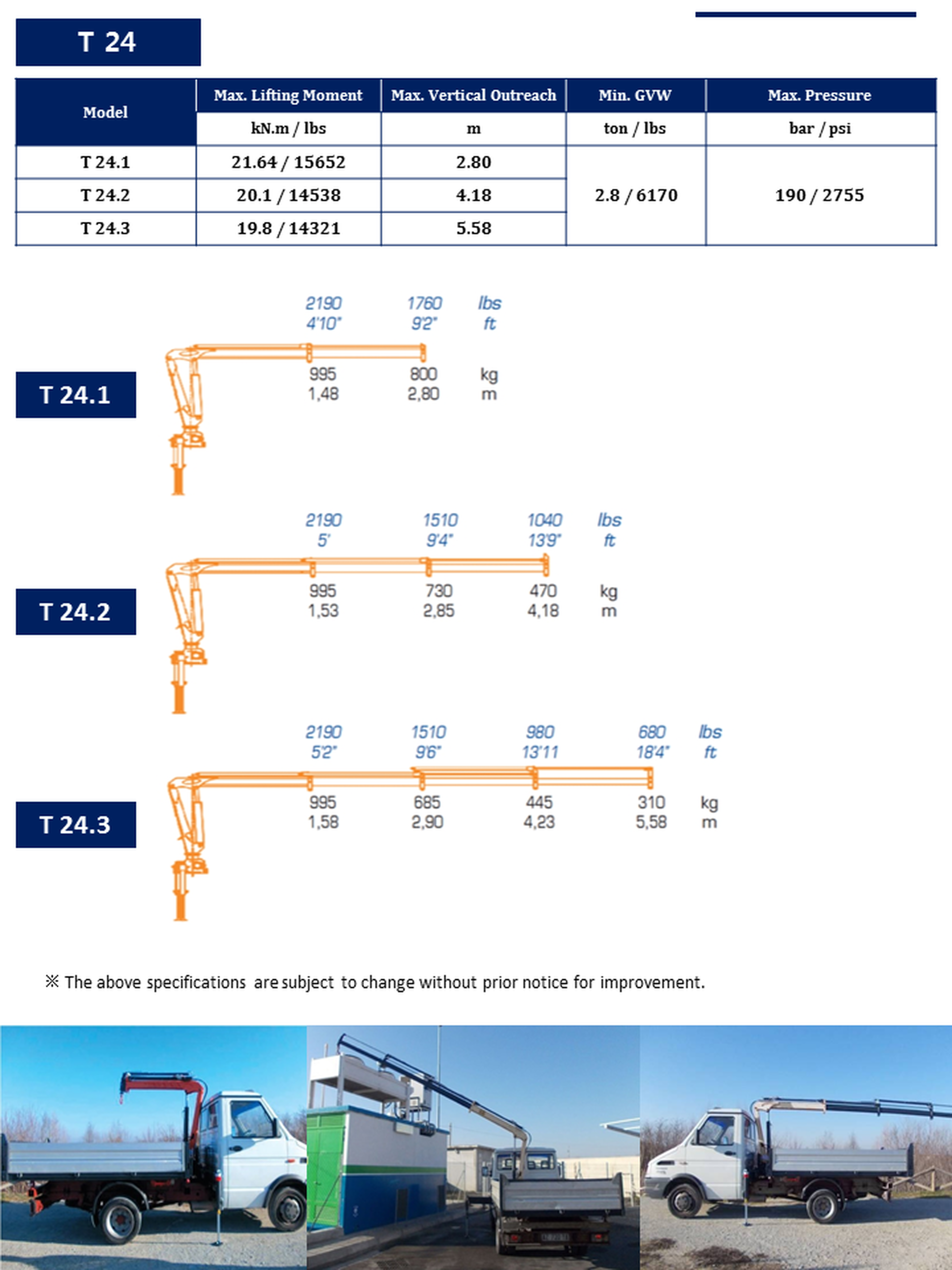

T-SERIES
↔ Scroll horizontally to compare all models.

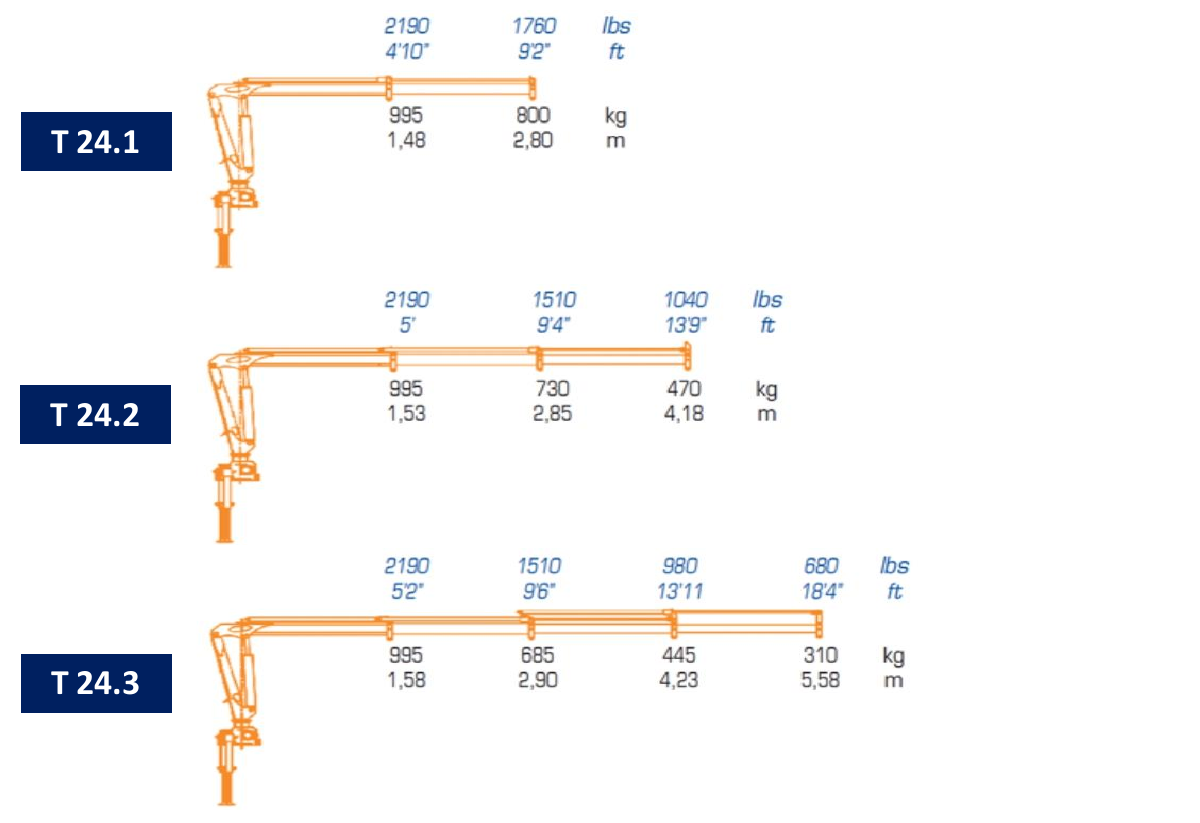

| Specification | T24.1 | T24.2 | T24.3 |
|---|---|---|---|
| Max. Lifting MomentkN.m | 21.64 | 20.1 | 19.8 |
| Horizontal Outreachm | 2.80 | 4.18 | 5.58 |
| Min. GVWton | 2.8 | 2.8 | 2.8 |
| Max. Pressurebar | 190 | 190 | 190 |

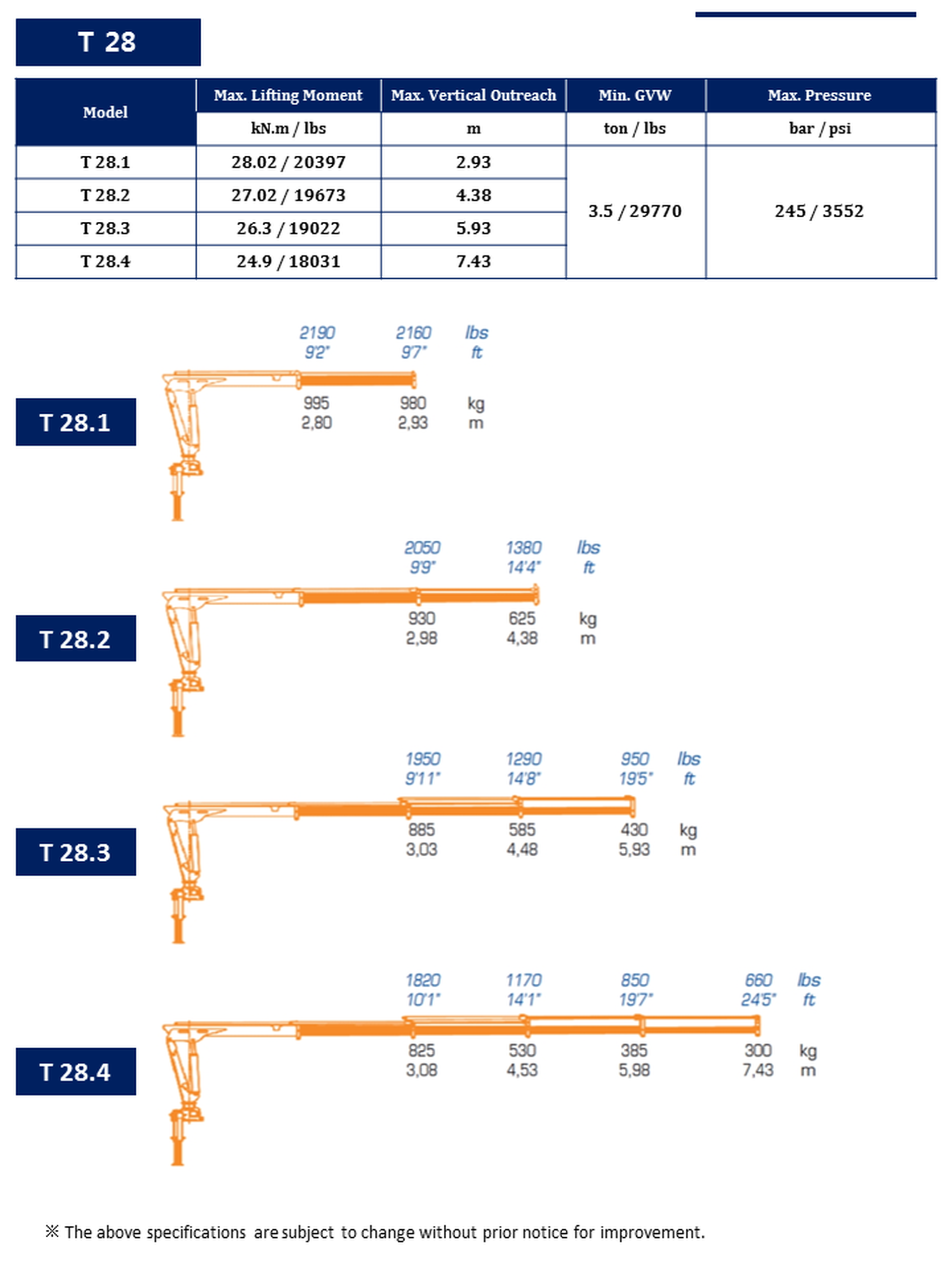

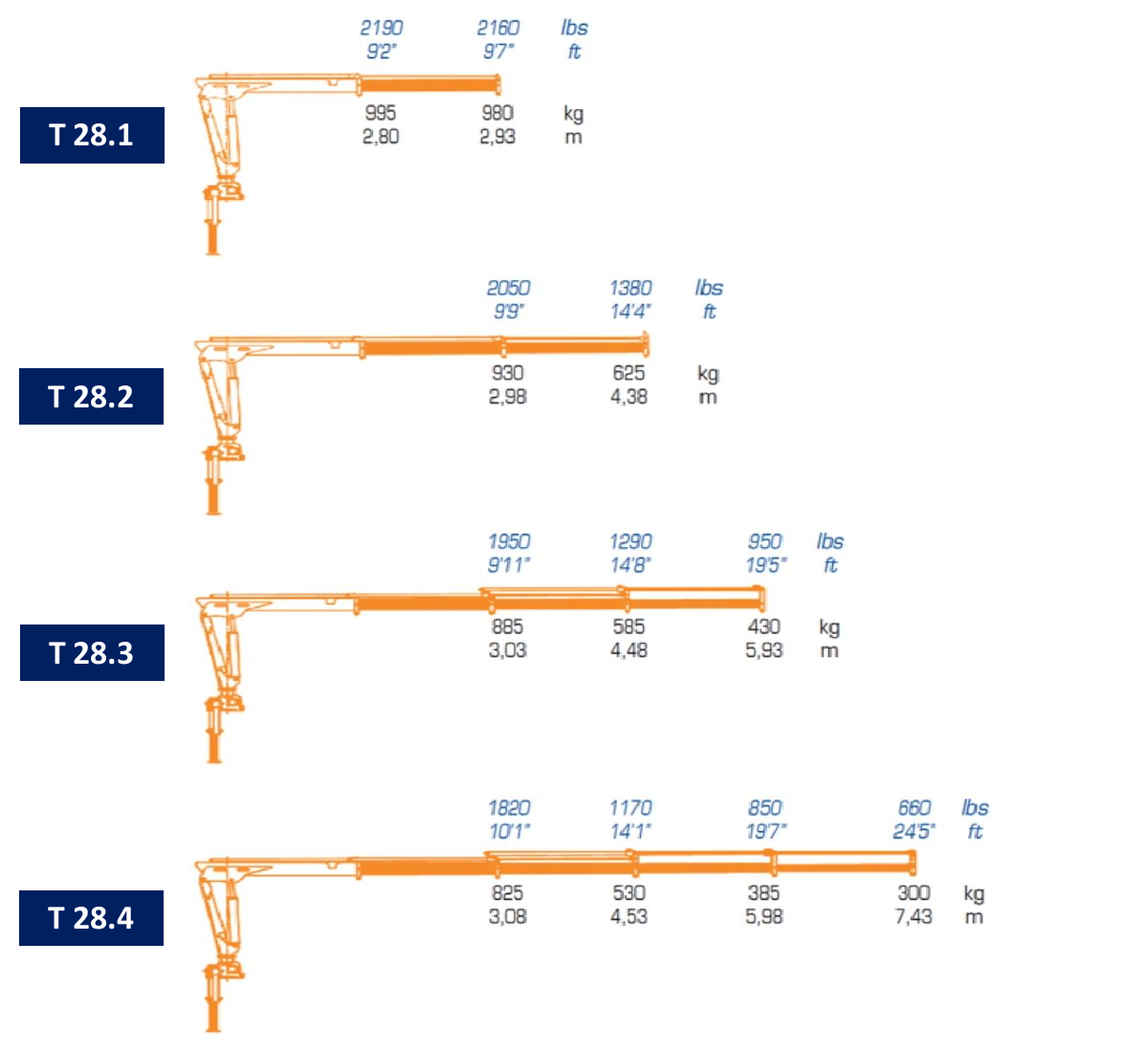

T-SERIES
↔ Scroll horizontally to compare all models.
| Specification | T28.1 | T28.2 | T28.3 | T28.4 |
|---|---|---|---|---|
| Max. Lifting MomentkN.m | 28.02 | 27.02 | 26.3 | 24.9 |
| Horizontal Outreachm | 2.93 | 4.38 | 5.93 | 7.43 |
| Min. GVWton | 3.5 | 3.5 | 3.5 | 3.5 |
| Max. Pressurebar | 245 | 245 | 245 | 245 |
No individual model photograph is assigned. See the articulated crane overview for a product-type reference photograph.
Specifications are subject to change without prior notice for improvement. Read drawings with the indicated model and operating conditions.
