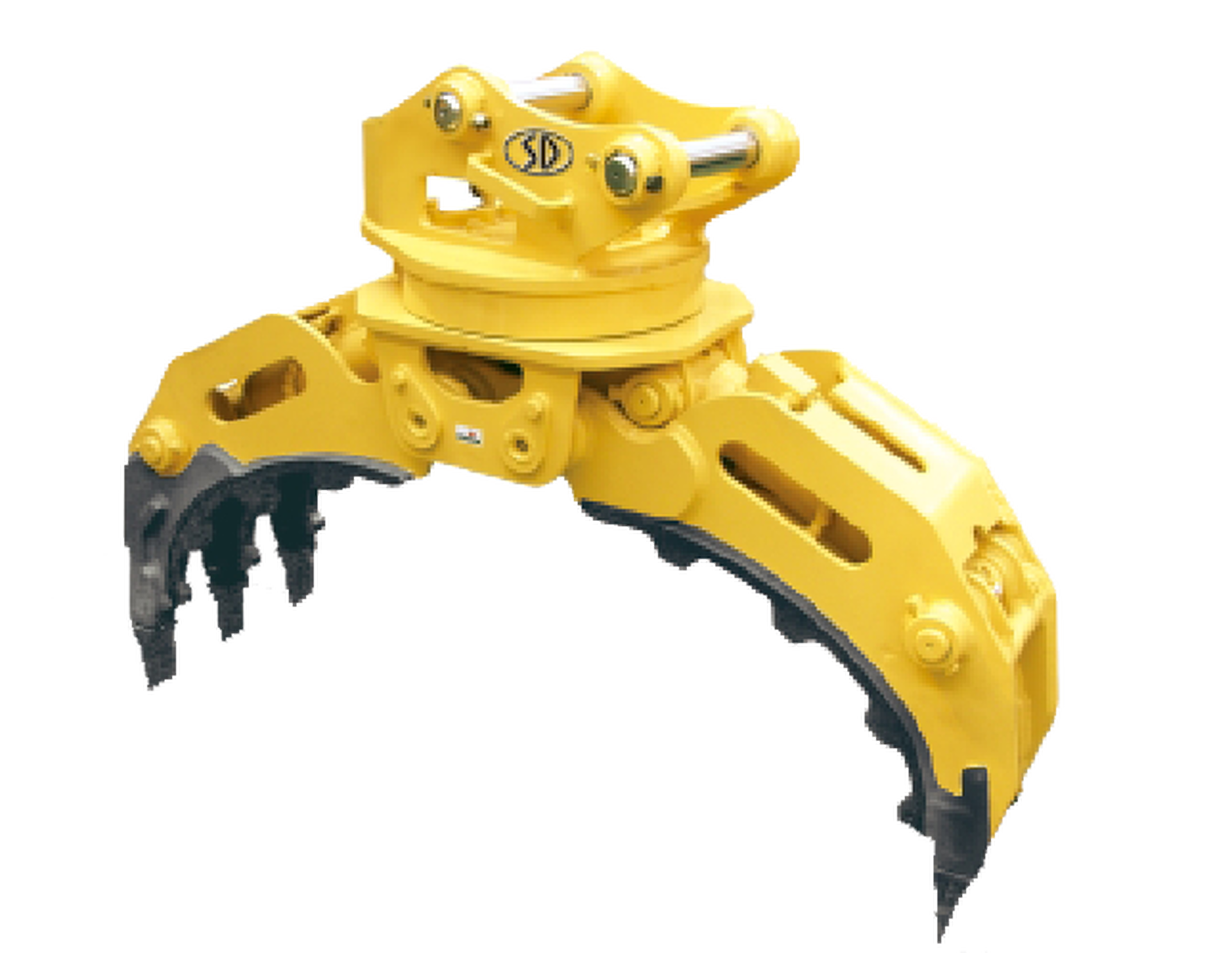

Rotating Stone Grapple · Representative product-type image

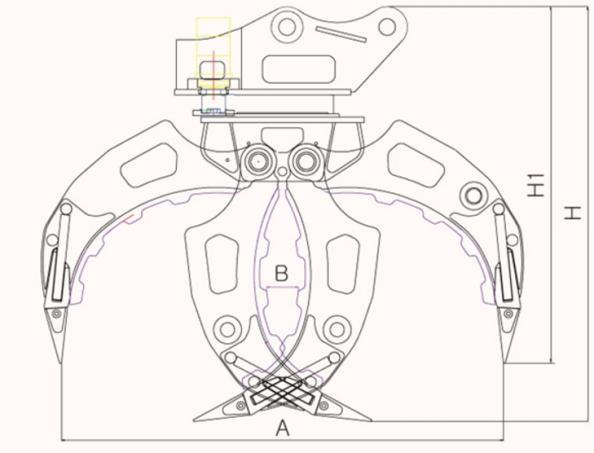

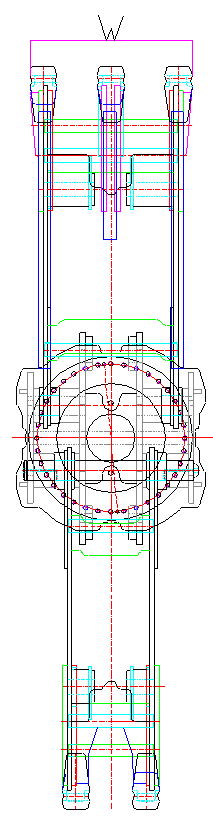

Rotating Stone Grapple · Common dimension reference Rotating Stone Grapple · Common dimension reference
ROTATING STONE GRAPPLE
SANGDO / GRAPPLE
Rotating Stone Grapple
2 models
Compare Rotating Stone Grapple models
↔ Scroll horizontally to compare all models.
Full confirmed specifications for each model.
01SRS03
| Applicable carrierton | 4~6 |
|---|---|
| Dimension Amm | 1,280 |
| Dimension Bmm | 100 |
| Dimension Wmm | 430 |
| Dimension Hmm | 1,360 |
| Dimension H1mm | 1,190 |
| Operating weightkg | 365 |
| Cylinder oil pressurekg/cm² | 110~200 |
| Cylinder setting pressurekg/cm² | 250 |
| Flow ratel/min | 30~50 |
| Hydraulic motor— | MR315CU |
| ToothNumber | MX40-1070-05031 |
Dimensions follow the lettered catalog drawing.
02SRS06
| Applicable carrierton | 9~13 |
|---|---|
| Dimension Amm | 1,700 |
| Dimension Bmm | 120 |
| Dimension Wmm | 507 |
| Dimension Hmm | 1,625 |
| Dimension H1mm | 1,400 |
| Operating weightkg | 850 |
| Cylinder oil pressurekg/cm² | 150~220 |
| Cylinder setting pressurekg/cm² | 250 |
| Flow ratel/min | 90~120 |
| Hydraulic motor— | MT500 |
| ToothNumber | RX140-61M4-31210 |
Dimensions follow the lettered catalog drawing.
Dimensions & reference drawings
Specifications are subject to change without prior notice for improvement. Representative photographs and common drawings do not identify every individual model.
