Vibro Ripper

SVR15, SVR20, SVR35, SVR40 and SVR50. Compare the catalogue specifications and dimension references below.

SVR15SVR20SVR35SVR40SVR50

Dimensions & specifications

SVR15 · SVR20 · SVR35 · SVR40 · SVR50

Enlarge drawing ↗

Enlarge drawing ↗

MODEL RANGE

SVR15SVR20SVR35SVR40SVR50

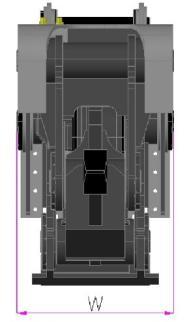

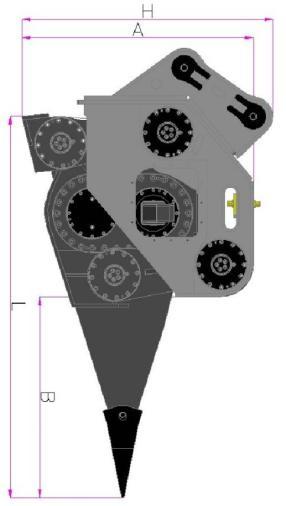

Type-reference drawing. Use the specifications for the selected model.

↔ Scroll horizontally to compare all models.

Vibro Ripper model comparison

Specification	SVR15	SVR20	SVR35	SVR40	SVR50
Weightkg	1,500	2,500	3,500	4,600	5,800
Flowℓ/min	100~120	170~190	180~200	200~220	250~260
Pressurebar	180~200	210~220	240~250	240~250	240~250
Frequencyrpm	1,600	1,600	1,500	1,300	1,200
Air bag pressurebar	2.5~3	2.5~3	2.5~3	3~4.5	3~4.5
Application excavatorton	12~16	18~26	22~32	33~39	38~55

Select a modelSVR15SVR20SVR35SVR40SVR50Open full specifications for each model.

01SVR15Details +

Weightkg	1,500
Flowℓ/min	100~120
Pressurebar	180~200
Frequencyrpm	1,600
Dimension Amm	1,160
Dimension Bmm	750
Dimension Hmm	870
Dimension Lmm	1,650
Dimension Wmm	500
Air bag pressurebar	2.5~3
Application excavatorton	12~16

02SVR20Details +

Weightkg	2,500
Flowℓ/min	170~190
Pressurebar	210~220
Frequencyrpm	1,600
Dimension Amm	1,310
Dimension Bmm	990
Dimension Hmm	1,480
Dimension Lmm	2,110
Dimension Wmm	780
Air bag pressurebar	2.5~3
Application excavatorton	18~26

03SVR35Details +

Weightkg	3,500
Flowℓ/min	180~200
Pressurebar	240~250
Frequencyrpm	1,500
Dimension Amm	1,400
Dimension Bmm	1,150
Dimension Hmm	1,510
Dimension Lmm	2,440
Dimension Wmm	840
Air bag pressurebar	2.5~3
Application excavatorton	22~32

04SVR40Details +

Weightkg	4,600
Flowℓ/min	200~220
Pressurebar	240~250
Frequencyrpm	1,300
Dimension Amm	1,860
Dimension Bmm	1,350
Dimension Hmm	1,940
Dimension Lmm	3,250
Dimension Wmm	1,040
Air bag pressurebar	3~4.5
Application excavatorton	33~39

05SVR50Details +

Weightkg	5,800
Flowℓ/min	250~260
Pressurebar	240~250
Frequencyrpm	1,200
Dimension Amm	1,950
Dimension Bmm	1,490
Dimension Hmm	2,010
Dimension Lmm	3,320
Dimension Wmm	1,040
Air bag pressurebar	3~4.5
Application excavatorton	38~55

Vibro Ripper video

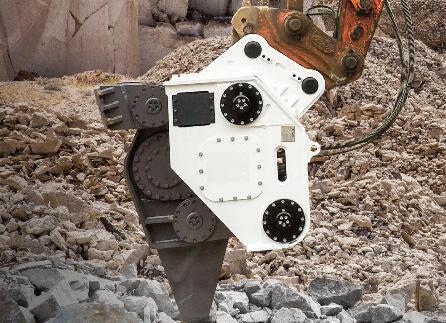

Specifications are subject to change without prior notice for improvement. Photographs and drawings are product-type references, not individual-model identifications.
