In-cab operation
The equipment can be operated by a seated operator for conventional work.
Remote Control Robot
SANGDO / REMOTE OPERATION
Remote operation.
Existing equipment.
A detachable robot system that operates the existing levers and pedals of heavy equipment. Bolt-on modules enable remote operation without modifying the machine.
- Installation
- Detachable bolt-on modules
- Operation
- In-cab and remote
- Transport
- Portable storage case
01 / SYSTEM CONFIGURATION
One system, four components
The remote controller works with a main controller and robot modules that move the equipment’s existing controls.

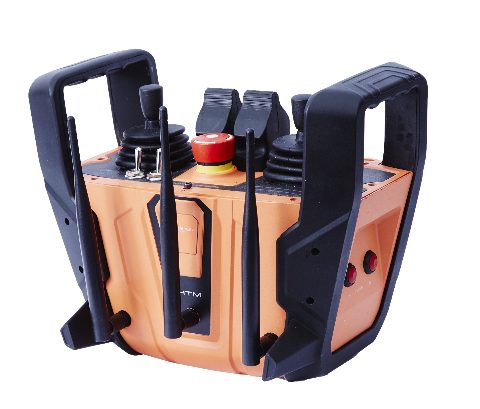

Remote controller
Controls for remote operation.

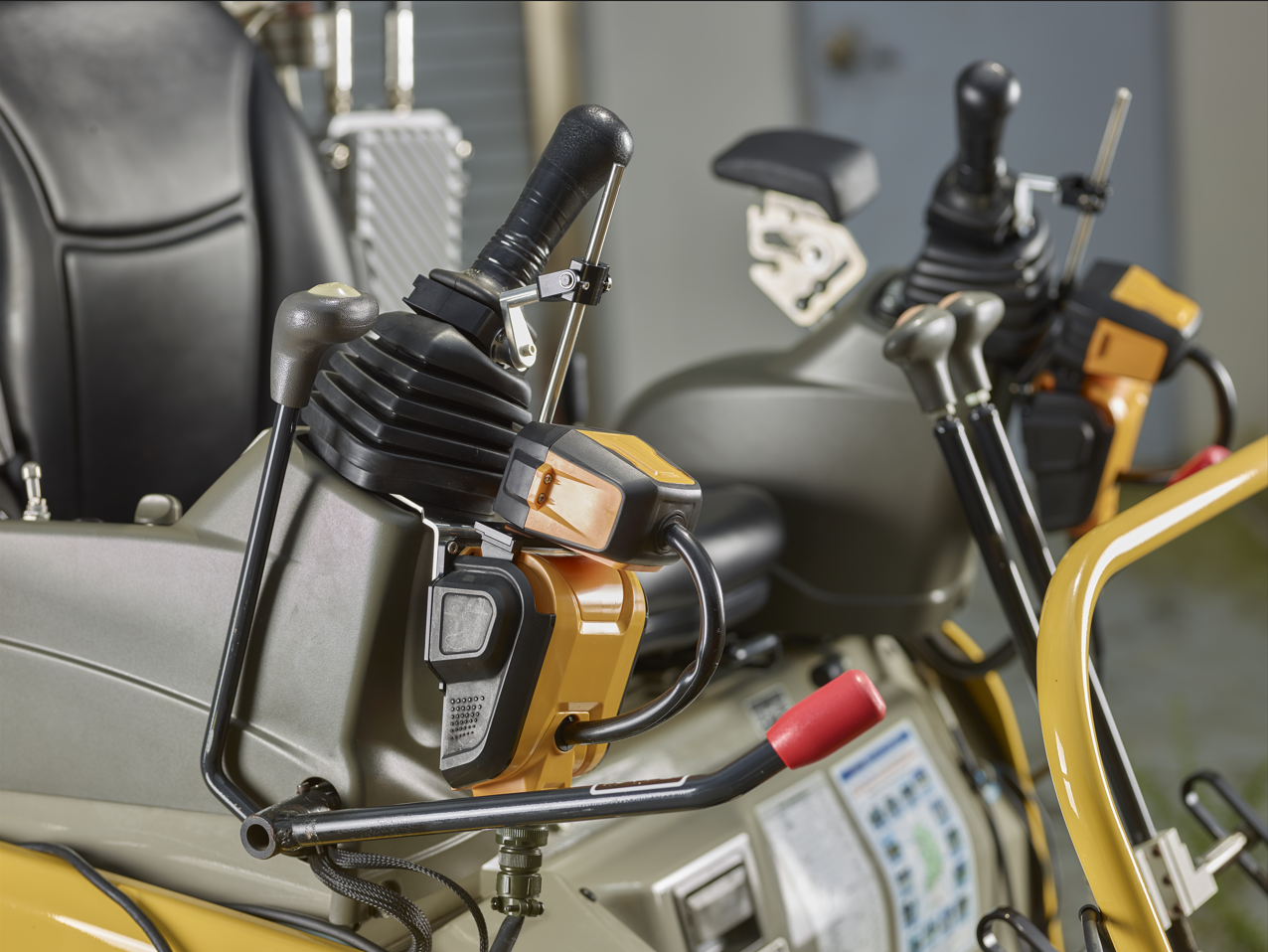

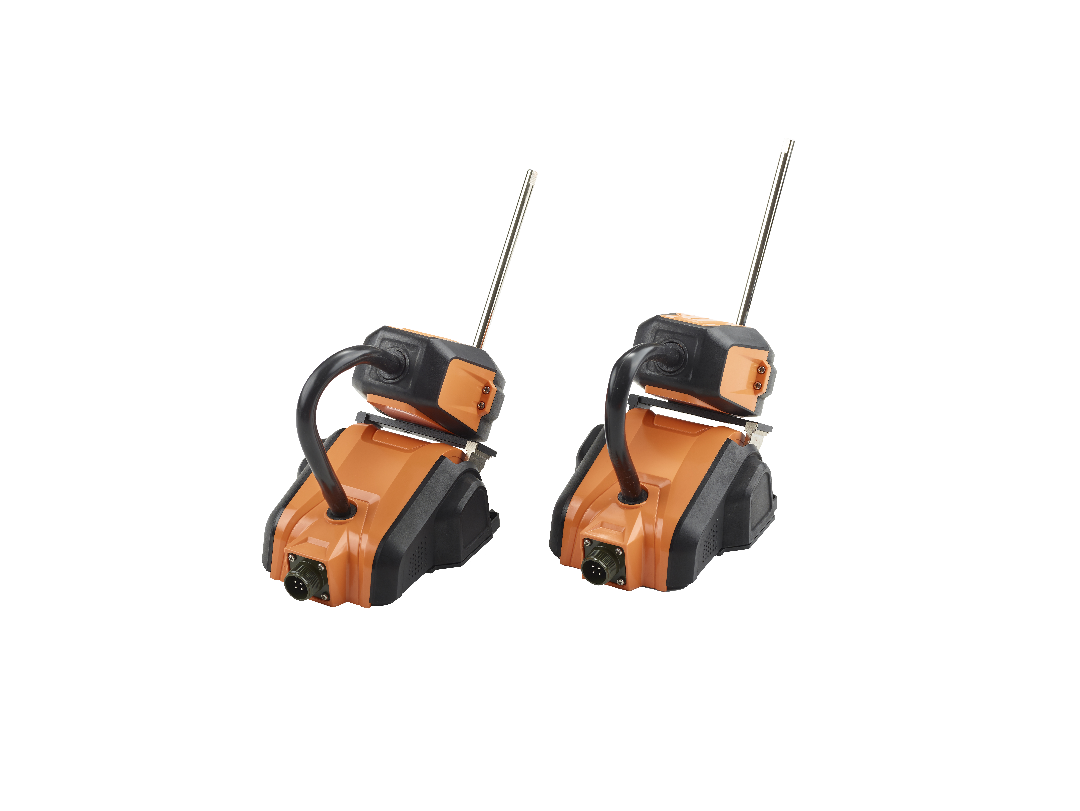

Lever control robots
Modules that operate the existing levers.

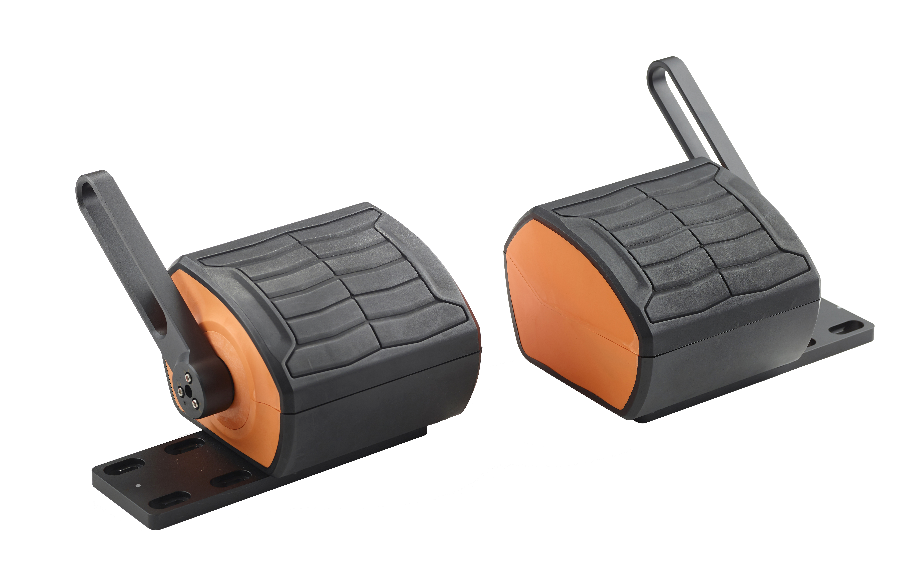

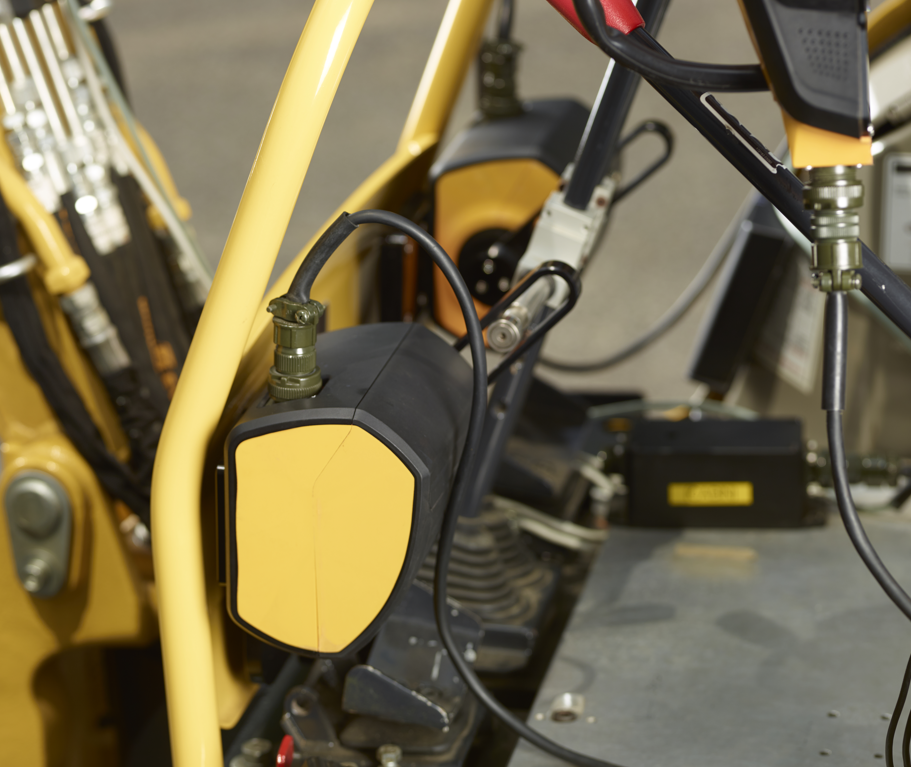

Pedal control robots
Modules that operate the existing pedals.

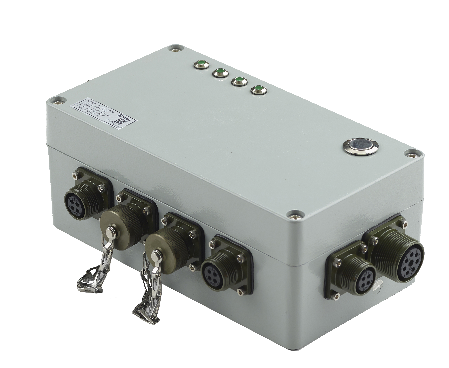

Main controller
Connects the system’s control components.
02 / INSTALLATION
Fit to the existing controls
Attach, detach and use again
The modules mount with a simple bolting method and can be detached from the equipment. The system uses the machine’s existing control layout.
- No machine modification
- Robotic modules attach to existing equipment controls.
- Removable installation
- The bolted mounting arrangement supports installation and removal.
- Use across equipment
- The system can be mounted on various heavy equipment. Discuss the required mounting arrangement for your machine with SANGDO.
03 / OPERATION
In the cab or at the remote controller

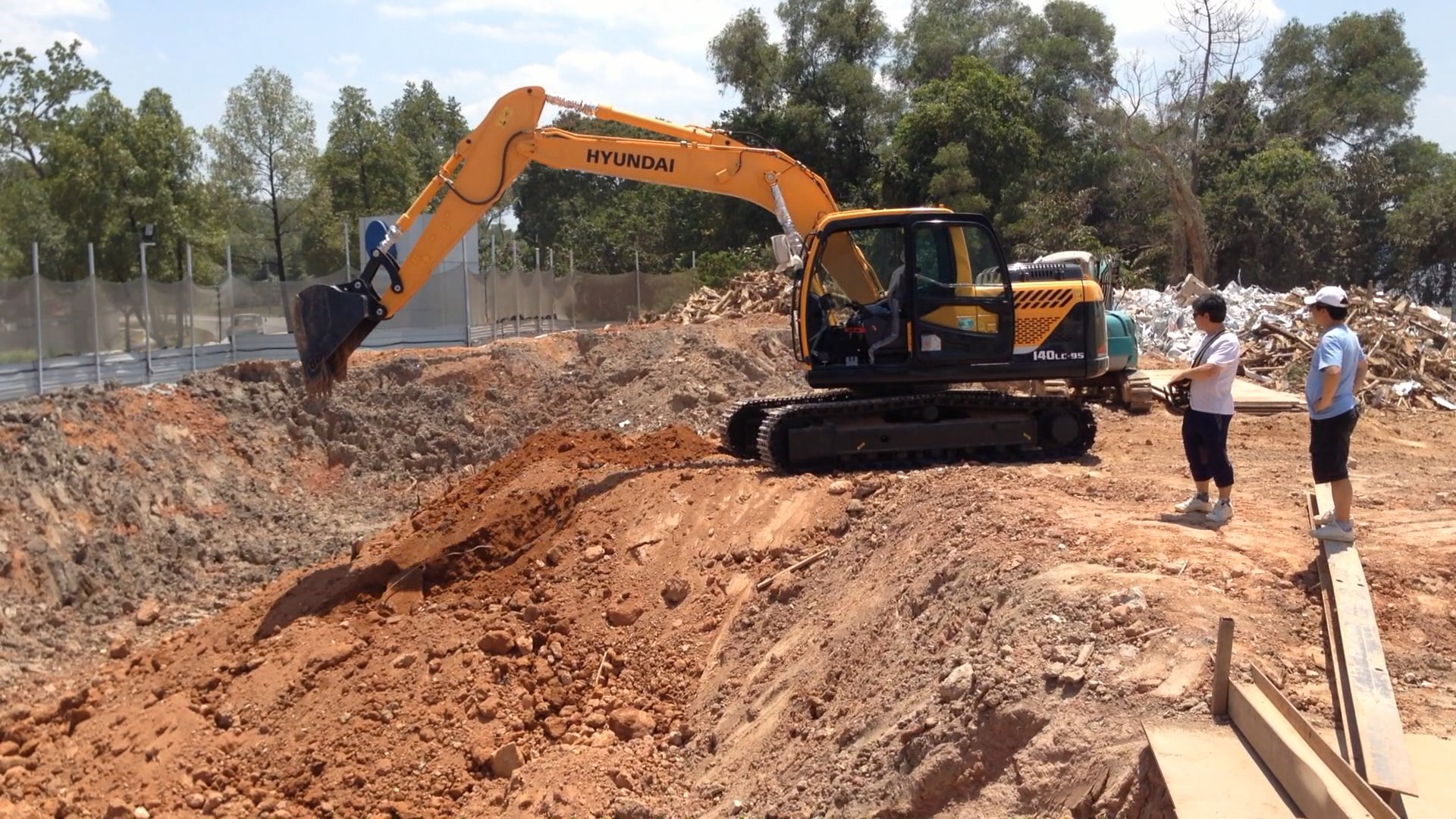

Remote operation
The operator uses the remote controller from outside the cab for work in hazardous or harsh environments.
04 / TRANSPORT
Pack the system for the next site

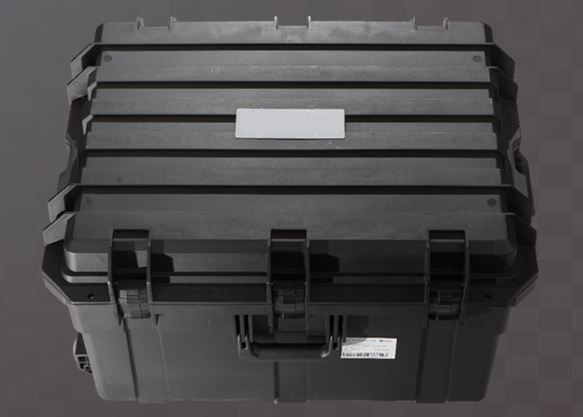

Portable storage

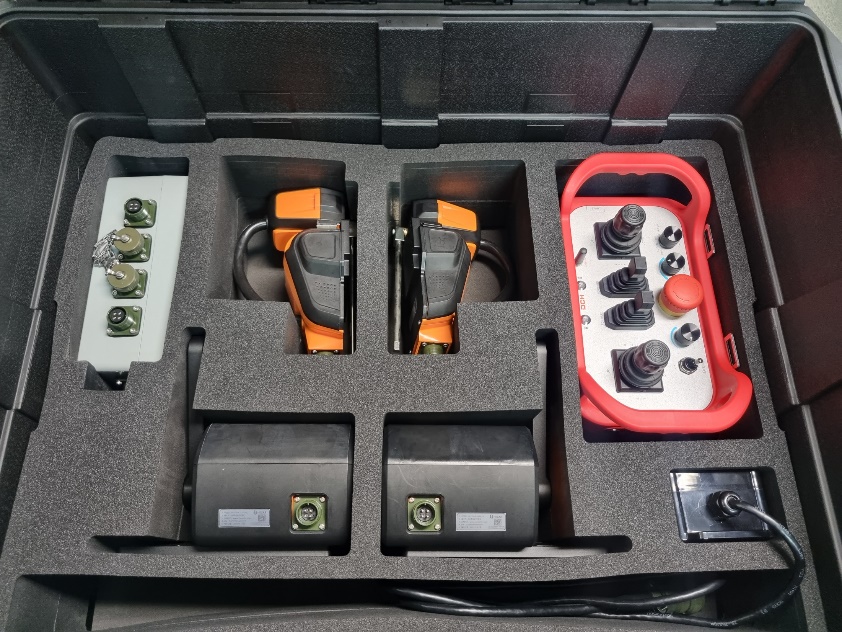

The controller and robot modules store together in a portable box. Carrying handles and wheels help move the system between locations.
05 / ACCESSORIES
Recording and video options
| Type | Example latency | Image quality | Configuration |
|---|---|---|---|
| Analog | 10 ms possible | Low resolution | Analog camera with video transmitter and receiver |
| Digital | Within 150 ms | High resolution | Digital transmitter and receiver; larger, heavier equipment |
These figures describe video equipment examples, not guaranteed system latency. Performance depends on the selected camera and transmission equipment.
PRODUCT INQUIRY
Discuss your equipment
Tell us your equipment model, application and required operating setup.
