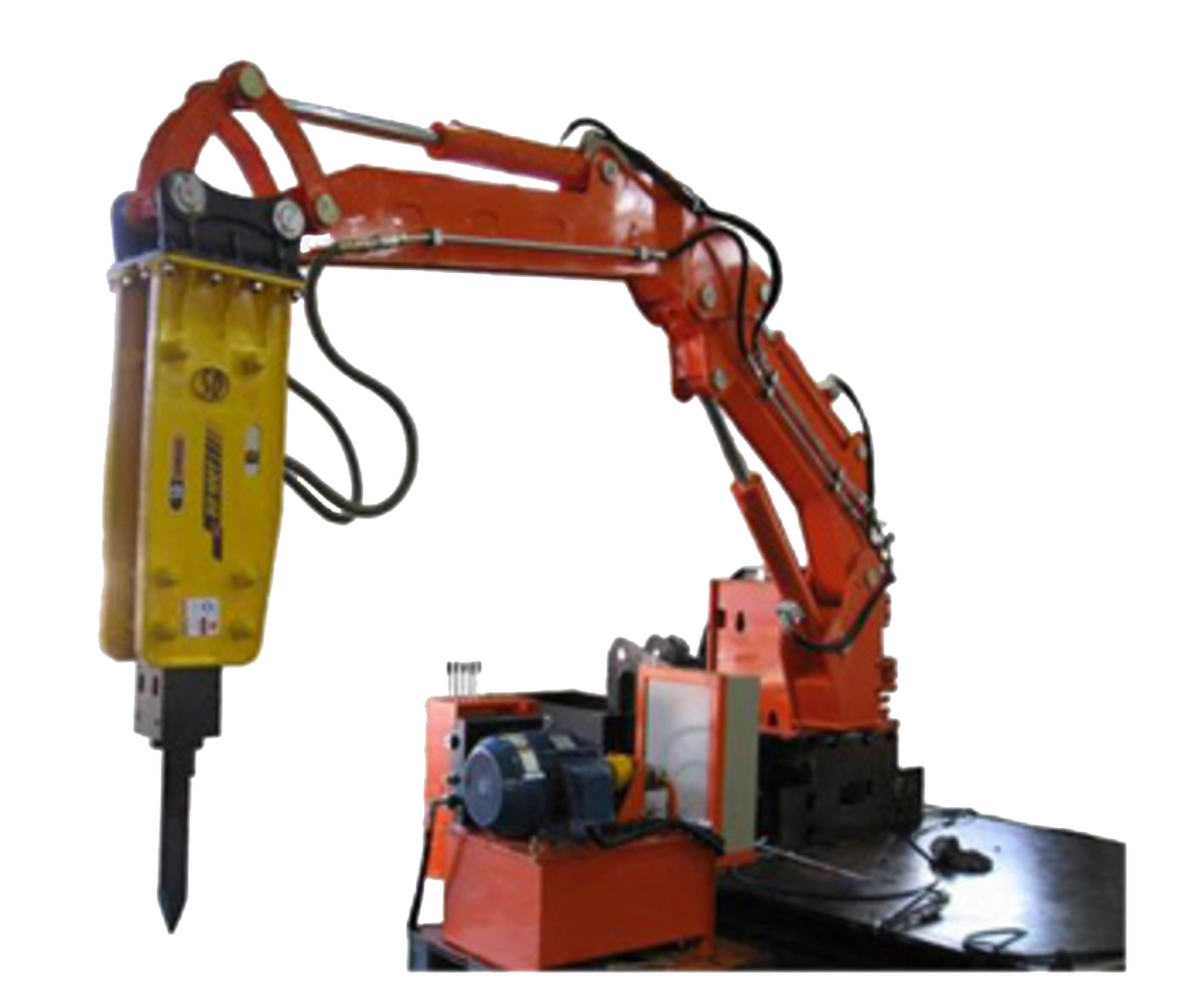

Pedestal Boom Breaker · Representative product-type image

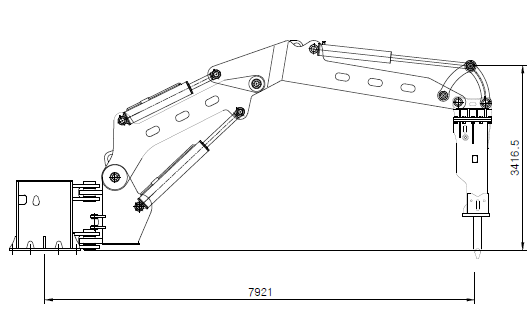

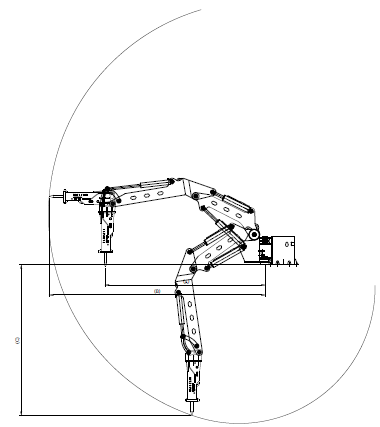

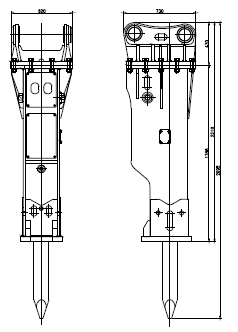

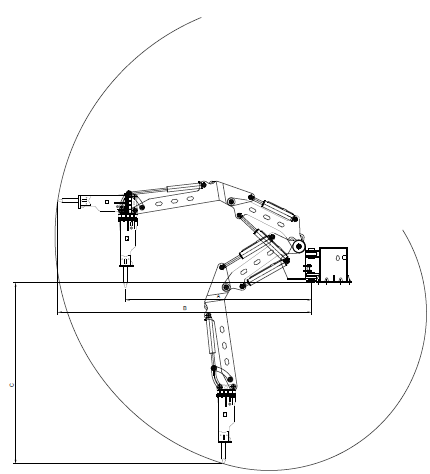

SD50VS pedestal system · Catalogue reference SD50VS pedestal system · Catalogue reference SD50VS pedestal system · Catalogue reference SD200VS pedestal system · Catalogue reference SD200VS pedestal system · Catalogue reference SD200VS pedestal system · Catalogue reference
PEDESTAL BOOM BREAKER
SANGDO / PEDESTAL SYSTEMS
Pedestal Boom Breaker
2 models
Compare Pedestal Boom Breaker models
↔ Scroll horizontally to compare all models.
| Specification | SD50VS | SD200VS |
|---|---|---|
| Max. lengthm | 5.5 | 9.7 |
| Max. heightm | 6.5 | 10 |
| Max. depthm | 3.8 | 6.8 |
| Max. rotation° | 165 | 165 |
| Working radius° | 165 | 165 |
| Electric powerKW | 22 | 45 |
| Oil tank capacityLitter | 150 | 500 |
| Oil pump pressurekg/cm² | 210 | 203.9 |
| Oil pump flow ratelpm | 62 | 109+61 |
| Electric motor horse powerPS | 30 | 61 |
| Electric motor frequencyHz | 60 | 60 |
| Oil pump type- | single | Tandem |
| Oil cooler flow ratelpm | 80 | — |
| Oil cooler speedrpm | 2500 | — |
| Oil cooler voltageVolt | 220 | — |
| Boom cylinder pressurekg/cm² | 270 | 270 |
| Arm cylinder pressurekg/cm² | 230 | 230 |
| Link cylinder pressurekg/cm² | 230 | 230 |
— Not specified for this model in the source catalogue; it does not mean the feature is unavailable.

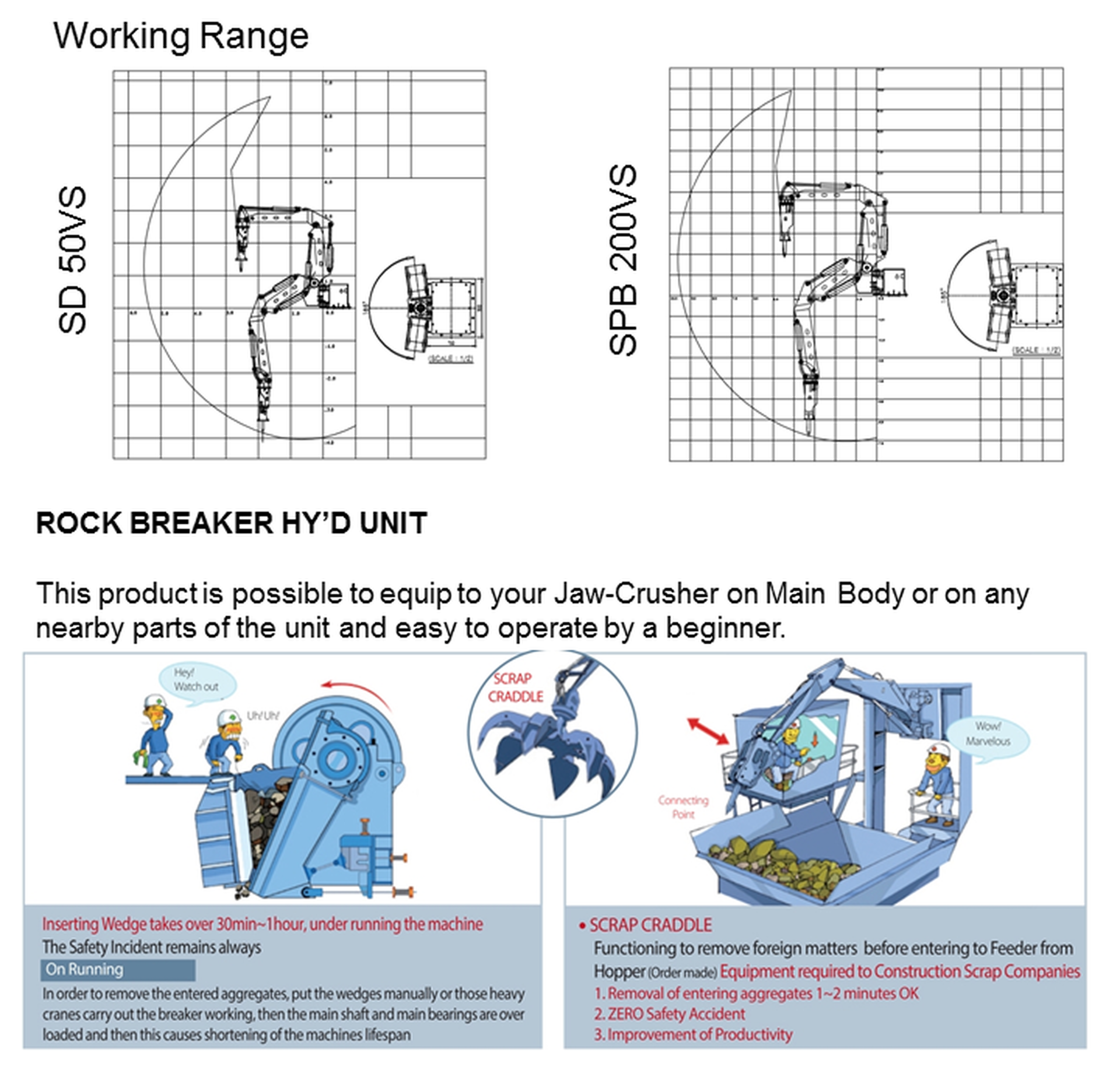

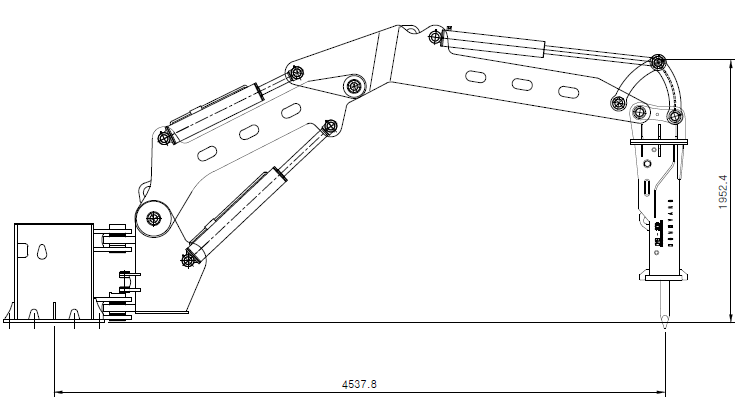

System dimensions & working ranges

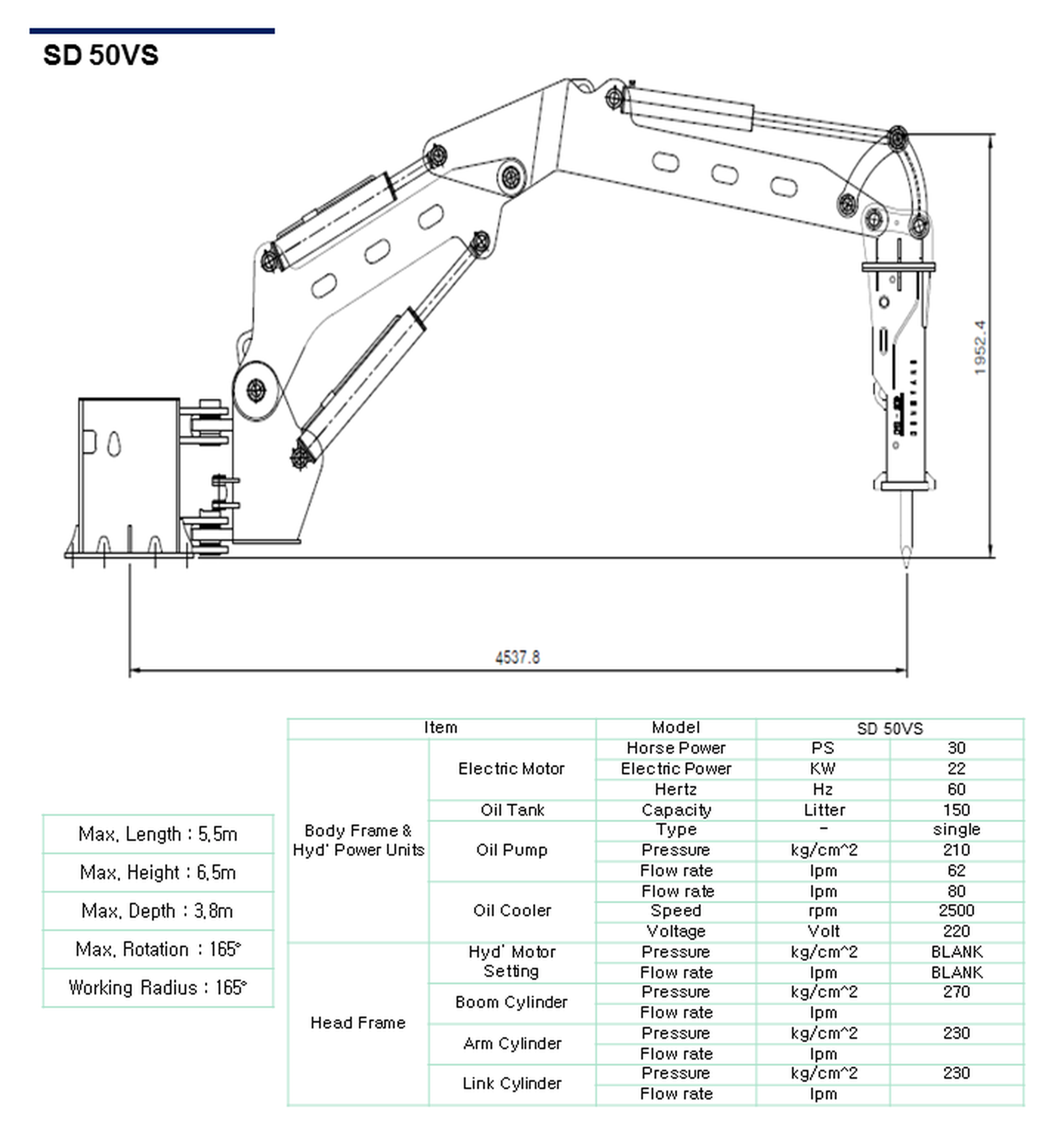

SD50VS

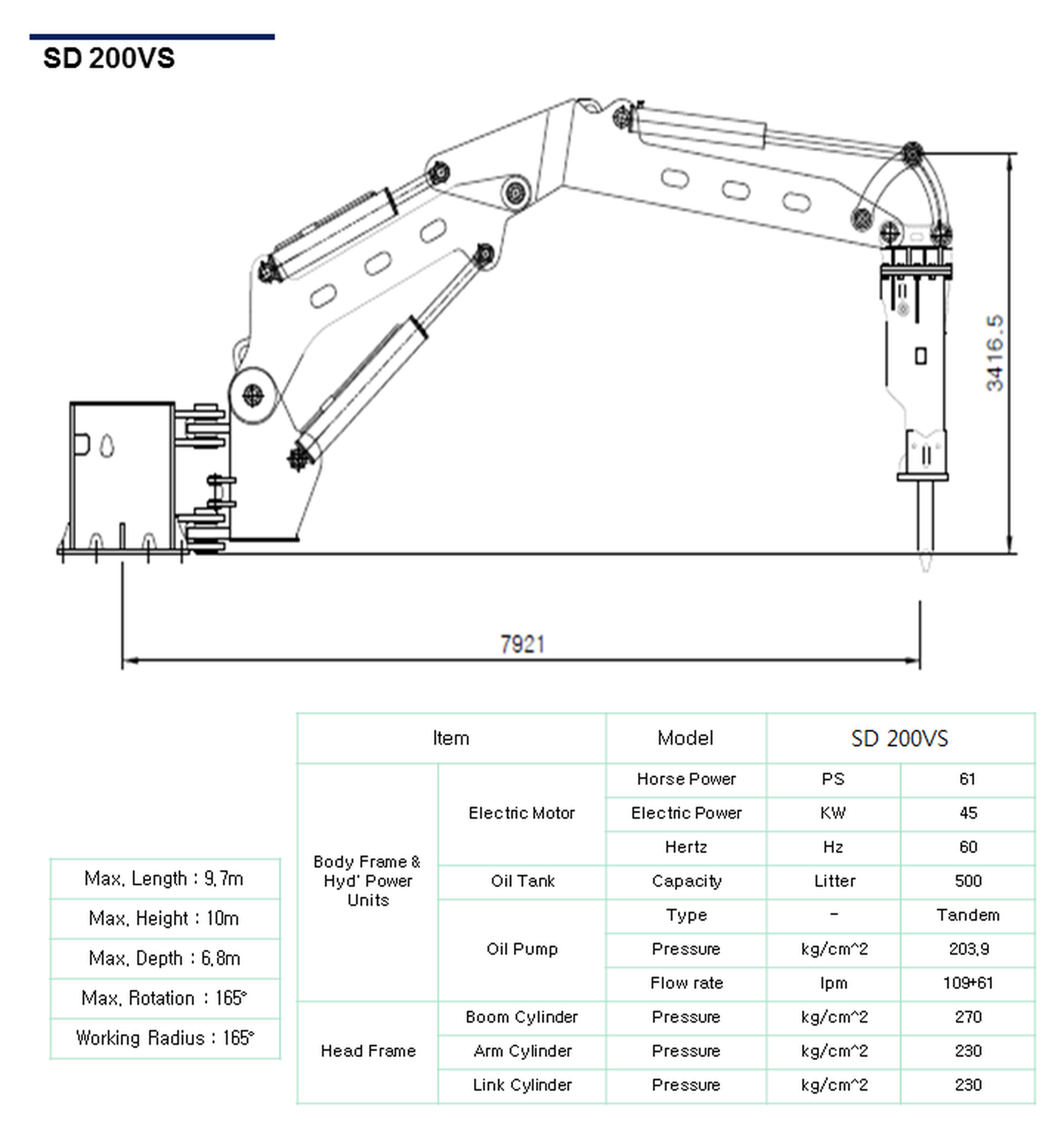

SD200VS
Product video
Specifications are subject to change without prior notice for improvement. Representative photographs and common drawings do not identify every individual model.
