A240
Medium Range

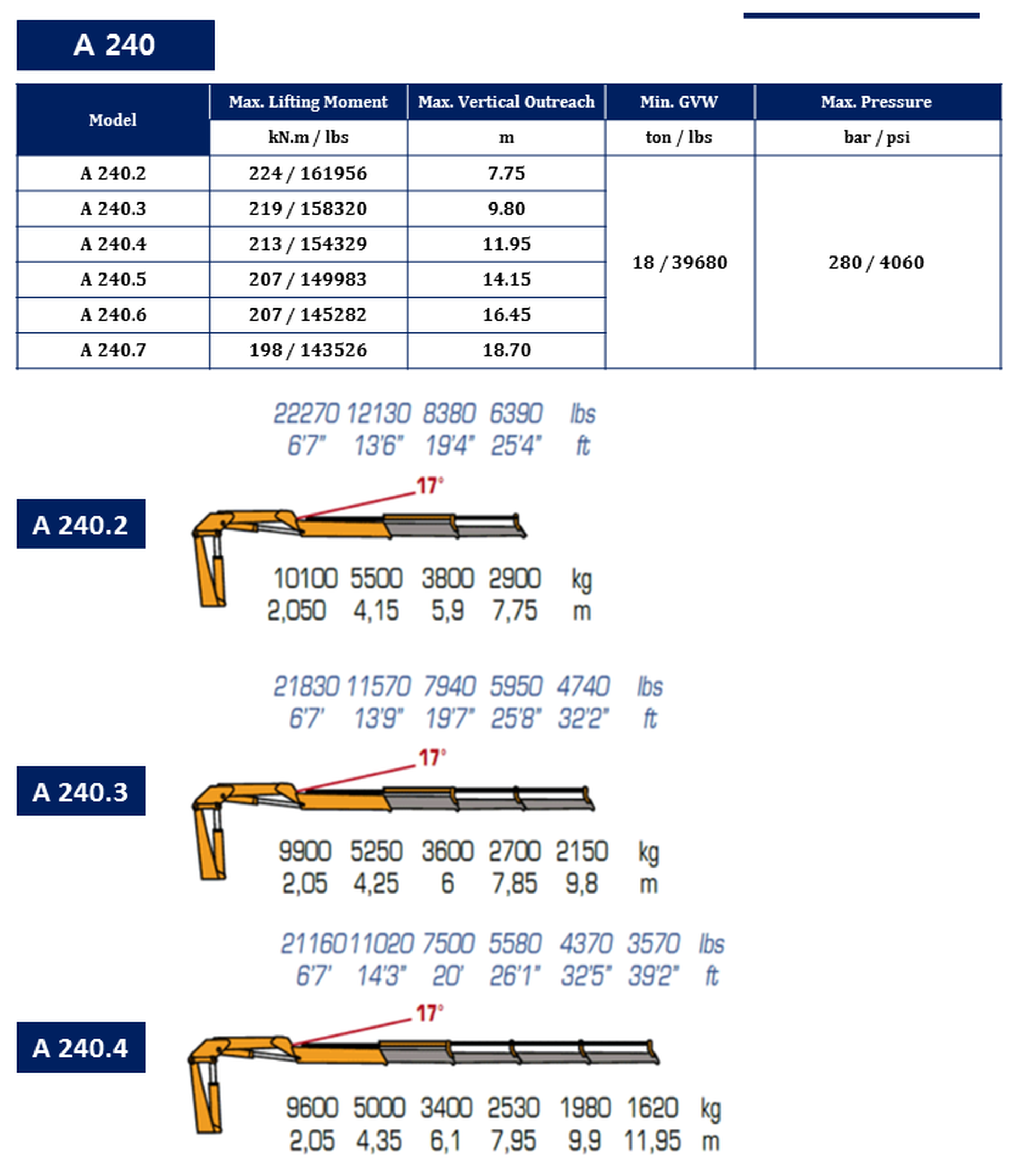

A240 model comparison
↔ Scroll horizontally to compare all models.
| Specification | A240.2 | A240.3 | A240.4 | A240.5 | A240.6 | A240.7 |
|---|---|---|---|---|---|---|
| Max. Lifting MomentkN.m | 224 | 219 | 213 | 207 | 207 | 198 |
| Horizontal Outreachm | 7.75 | 9.80 | 11.95 | 14.15 | 16.45 | 18.70 |
| Min. GVWton | 18 | 18 | 18 | 18 | 18 | 18 |
| Max. Pressurebar | 280 | 280 | 280 | 280 | 280 | 280 |
01A240.2
| Max. Lifting MomentkN.m | 224 |
|---|---|
| Horizontal Outreachm | 7.75 |
| Min. GVWton | 18 |
| Max. Pressurebar | 280 |
No individual model photograph is assigned. See the articulated crane overview for a product-type reference photograph.
02A240.3
| Max. Lifting MomentkN.m | 219 |
|---|---|
| Horizontal Outreachm | 9.80 |
| Min. GVWton | 18 |
| Max. Pressurebar | 280 |
No individual model photograph is assigned. See the articulated crane overview for a product-type reference photograph.
03A240.4
| Max. Lifting MomentkN.m | 213 |
|---|---|
| Horizontal Outreachm | 11.95 |
| Min. GVWton | 18 |
| Max. Pressurebar | 280 |
No individual model photograph is assigned. See the articulated crane overview for a product-type reference photograph.
04A240.5
| Max. Lifting MomentkN.m | 207 |
|---|---|
| Horizontal Outreachm | 14.15 |
| Min. GVWton | 18 |
| Max. Pressurebar | 280 |
No individual model photograph is assigned. See the articulated crane overview for a product-type reference photograph.
05A240.6
| Max. Lifting MomentkN.m | 207 |
|---|---|
| Horizontal Outreachm | 16.45 |
| Min. GVWton | 18 |
| Max. Pressurebar | 280 |
No individual model photograph is assigned. See the articulated crane overview for a product-type reference photograph.
06A240.7
| Max. Lifting MomentkN.m | 198 |
|---|---|
| Horizontal Outreachm | 18.70 |
| Min. GVWton | 18 |
| Max. Pressurebar | 280 |
No individual model photograph is assigned. See the articulated crane overview for a product-type reference photograph.

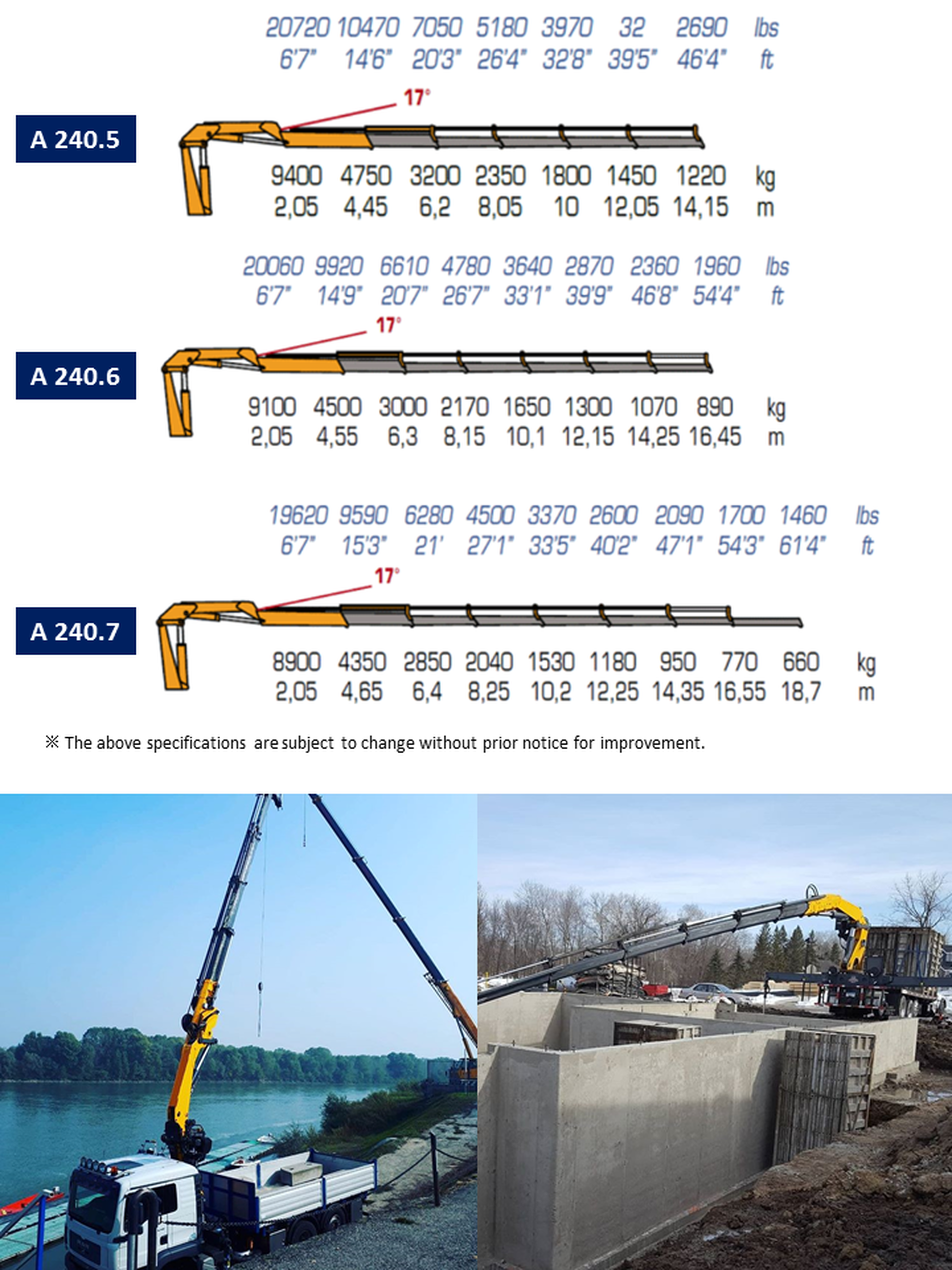

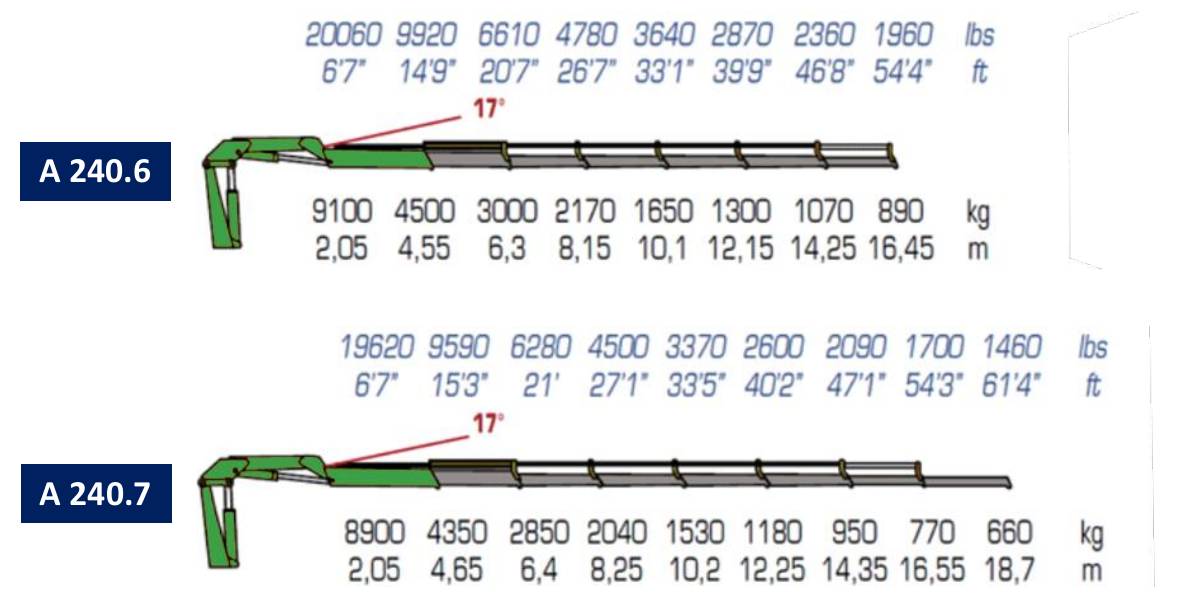

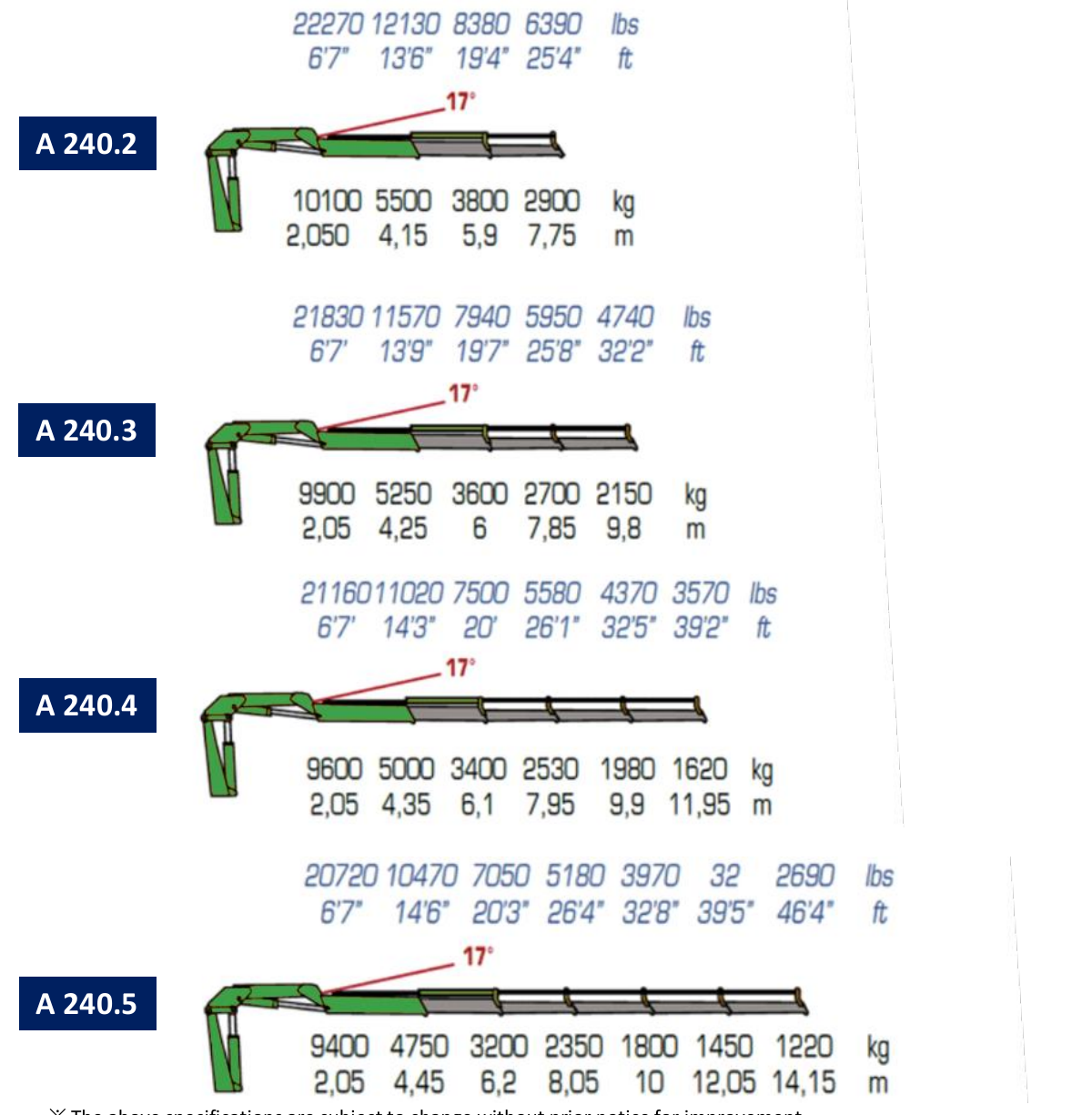

Catalogue model drawings
Specifications are subject to change without prior notice for improvement. Read drawings with the indicated model and operating conditions.
