SANGDO

Compact Range

Swipe or scroll horizontally to compare models →

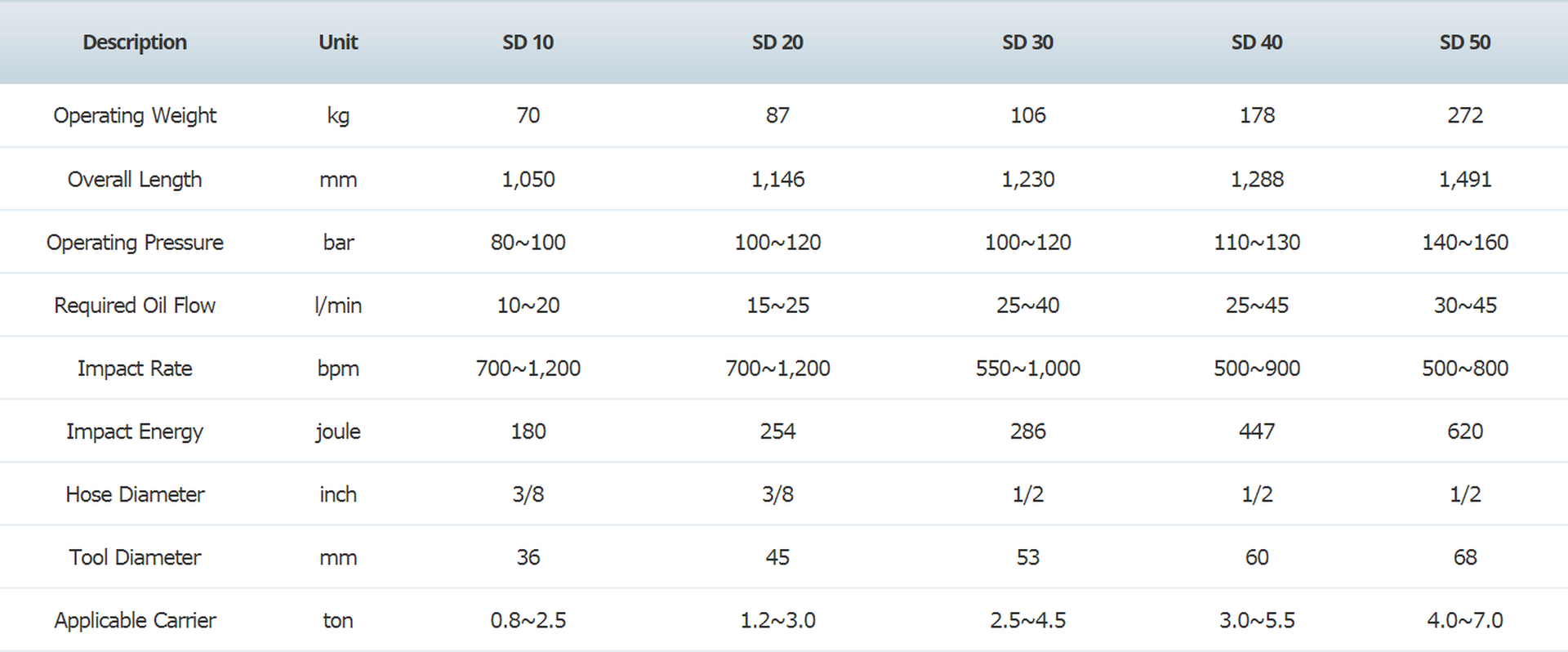

Standard Type — Compact Range specifications
Description	Unit	SD 10	SD 20	SD 30	SD 40	SD 50	SD 70
Operating Weight	kg	70	87	106	178	272	384
Overall Length	mm	1,050	1,146	1,230	1,288	1,491	1,613
Operating Pressure	bar	80~100	100~120	100~120	110~130	140~160	140~160
Required Oil Flow	L/min	10~20	15~25	25~40	25~45	30~45	40~70
Impact Rate	bpm	700~1,200	700~1,200	550~1,000	500~900	500~800	400~800
Impact Energy	joule	180	254	286	447	620	945
Hose Diameter	inch	3/8	3/8	1/2	1/2	1/2	1/2
Tool Diameter	mm	36	45	53	60	68	75
Applicable Carrier	ton	0.8~2.5	1.2~3.0	2.5~4.5	3.0~5.5	4.0~7.0	6~9

Medium Range

Swipe or scroll horizontally to compare models →

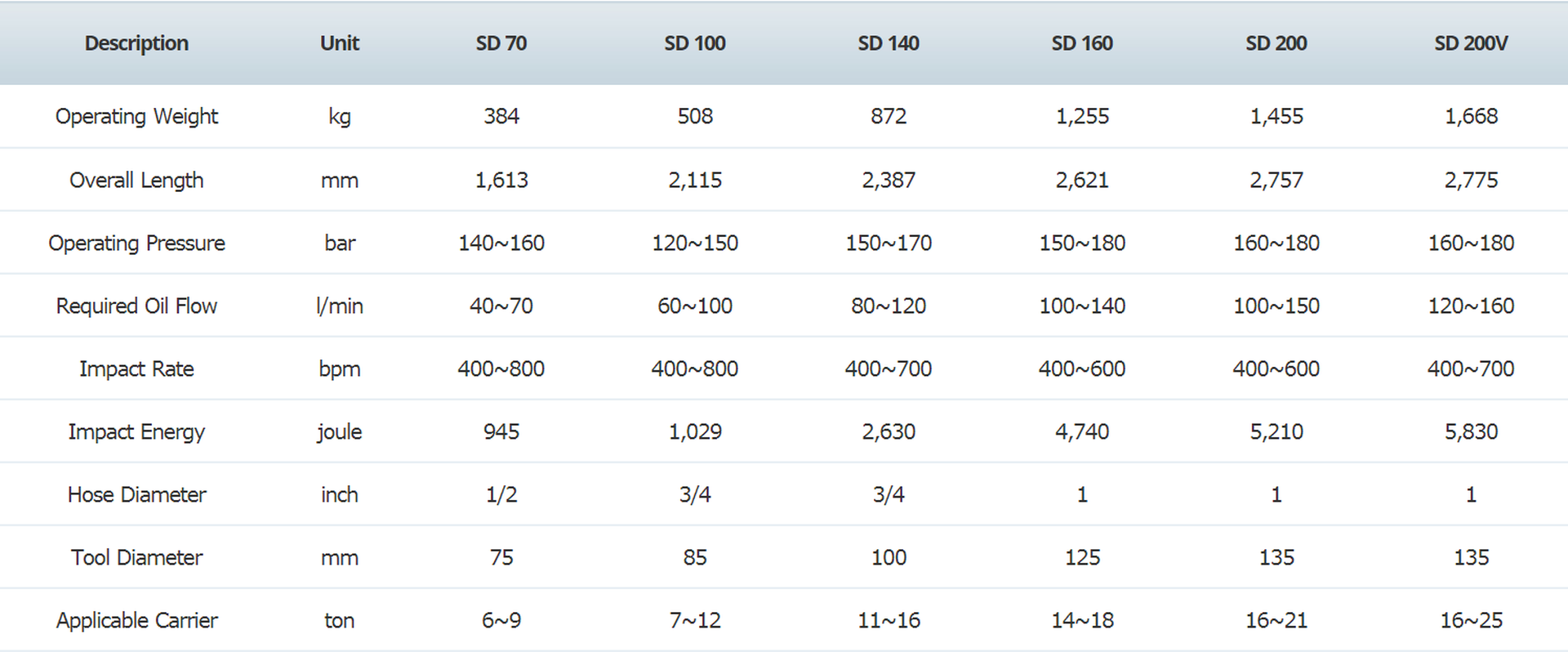

Standard Type — Medium Range specifications
Description	Unit	SD 100	SD 140	SD 160	SD 200	SD 200V	SD 220
Operating Weight	kg	508	872	1,255	1,455	1,668	1,871
Overall Length	mm	2,115	2,387	2,621	2,757	2,775	2,781
Operating Pressure	bar	120~150	150~170	150~180	160~180	160~180	160~180
Required Oil Flow	L/min	60~100	80~120	100~140	100~150	120~160	130~170
Impact Rate	bpm	400~800	400~700	400~600	400~600	400~700	400~600
Impact Energy	joule	1,029	2,630	4,740	5,210	5,830	6,380
Hose Diameter	inch	3/4	3/4	1	1	1	1
Tool Diameter	mm	85	100	125	135	135	140
Applicable Carrier	ton	7~12	11~16	14~18	16~21	16~25	18~26

Heavy Duty Range

Swipe or scroll horizontally to compare models →

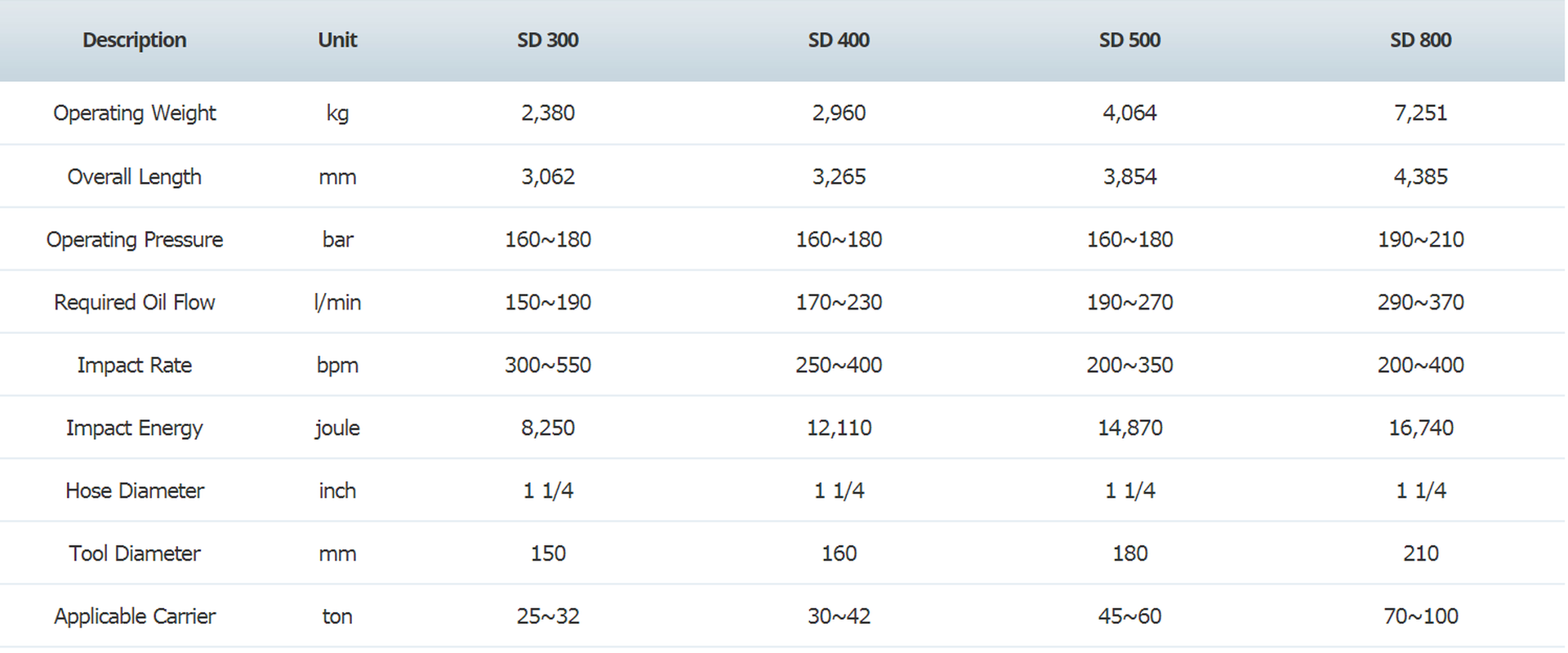

Standard Type — Heavy Duty Range specifications
Description	Unit	SD 300	SD 330	SD 400	SD 440	SD 500	SD 550	SD 800
Operating Weight	kg	2,380	2,838	2,960	3,065	4,064	4,002	7,251
Overall Length	mm	3,062	3,336	3,265	3,043	3,854	3,268	4,385
Operating Pressure	bar	160~180	160~180	160~180	160~180	160~180	160~180	190~210
Required Oil Flow	L/min	150~190	180~240	170~230	200~260	190~270	210~290	290~370
Impact Rate	bpm	300~550	300~450	250~400	250~400	200~350	200~350	200~400
Impact Energy	joule	8,250	11,540	12,110	13,205	14,870	14,210	16,740
Hose Diameter	inch	1	1¼	1¼	1¼	1¼	1¼	1¼
Tool Diameter	mm	150	155	160	165	180	175	210
Applicable Carrier	ton	25~32	28~35	30~42	30~45	45~60	40~55	70~100

‌The above specifications are subject to change without prior notice for improvement.
