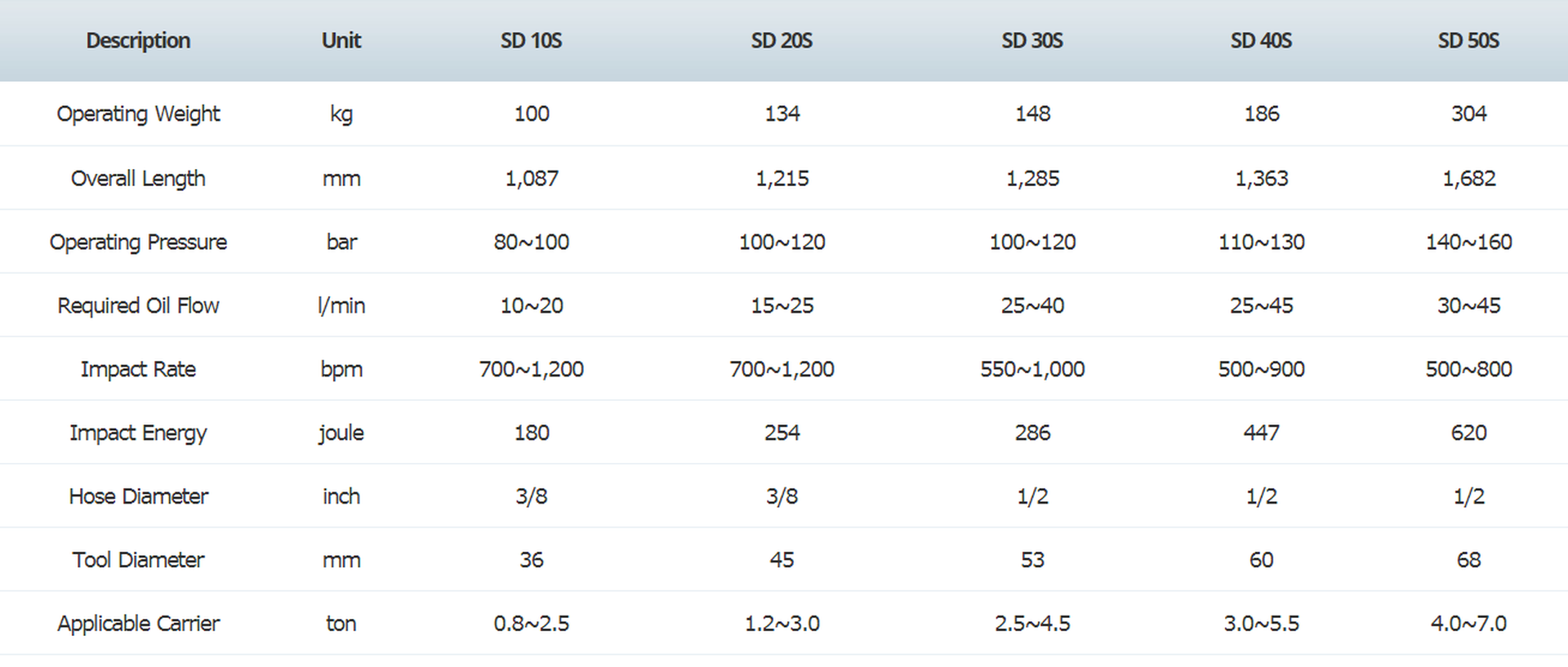

Compact Range
Swipe or scroll horizontally to compare models →
| Description | Unit | SD 10S | SD 20S | SD 30S | SD 40S | SD 50S | SD 70S |
|---|---|---|---|---|---|---|---|
| Operating Weight | kg | 100 | 134 | 148 | 186 | 304 | 405 |
| Overall Length | mm | 1,087 | 1,215 | 1,285 | 1,363 | 1,682 | 1,684 |
| Operating Pressure | bar | 80~100 | 100~120 | 100~120 | 110~130 | 140~160 | 140~160 |
| Required Oil Flow | L/min | 10~20 | 15~25 | 25~40 | 25~45 | 30~45 | 40~70 |
| Impact Rate | bpm | 700~1,200 | 700~1,200 | 550~1,000 | 500~900 | 500~800 | 400~800 |
| Impact Energy | joule | 180 | 254 | 286 | 447 | 620 | 945 |
| Hose Diameter | inch | 3/8 | 3/8 | 1/2 | 1/2 | 1/2 | 1/2 |
| Tool Diameter | mm | 36 | 45 | 53 | 60 | 68 | 75 |
| Applicable Carrier | ton | 0.8~2.5 | 1.2~3.0 | 2.5~4.5 | 3.0~5.5 | 4.0~7.0 | 6~9 |

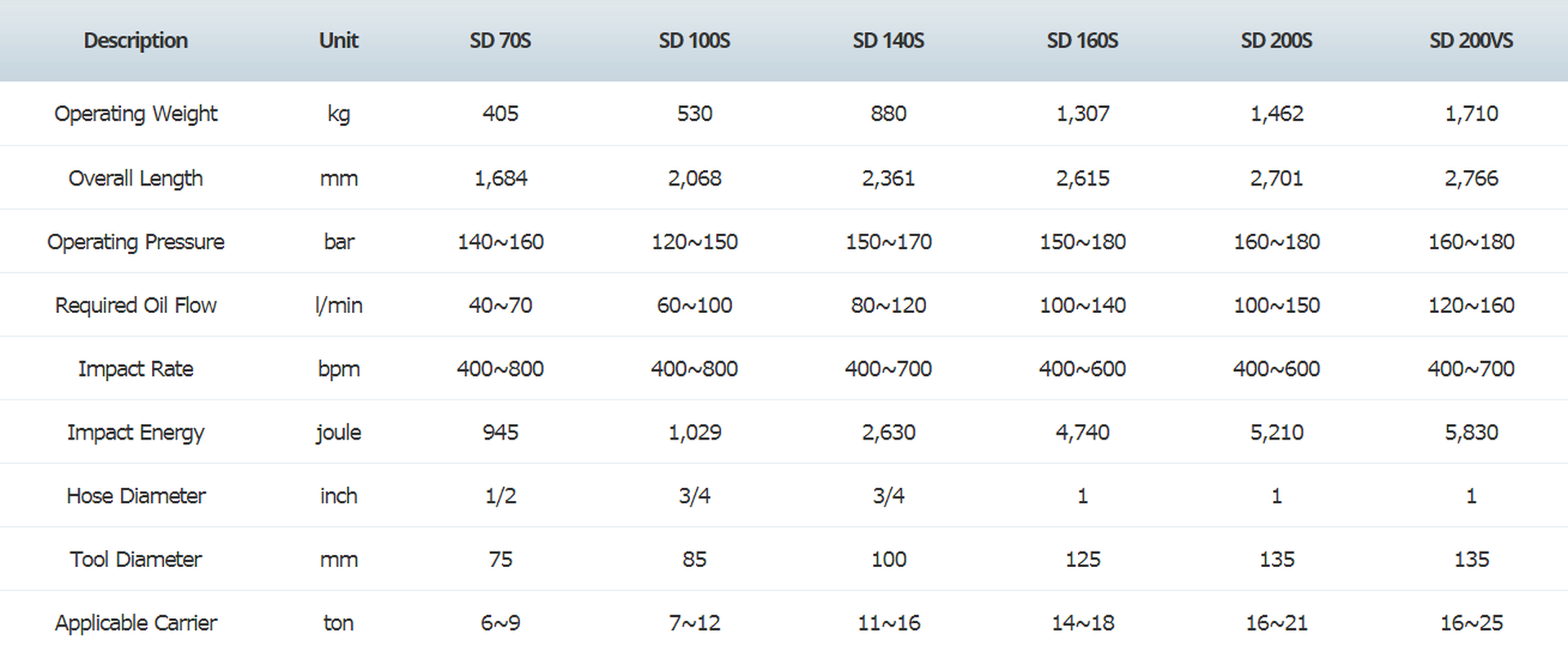

Medium Range
Swipe or scroll horizontally to compare models →
| Description | Unit | SD 100S | SD 140S | SD 160S | SD 200S | SD 200VS | SD 220S |
|---|---|---|---|---|---|---|---|
| Operating Weight | kg | 530 | 880 | 1,307 | 1,462 | 1,710 | 1,903 |
| Overall Length | mm | 2,068 | 2,361 | 2,615 | 2,701 | 2,766 | 2,860 |
| Operating Pressure | bar | 120~150 | 150~170 | 150~180 | 160~180 | 160~180 | 160~180 |
| Required Oil Flow | L/min | 60~100 | 80~120 | 100~140 | 100~150 | 120~160 | 130~170 |
| Impact Rate | bpm | 400~800 | 400~700 | 400~600 | 400~600 | 400~700 | 400~600 |
| Impact Energy | joule | 1,029 | 2,630 | 4,740 | 5,210 | 5,830 | 6,380 |
| Hose Diameter | inch | 3/4 | 3/4 | 1 | 1 | 1 | 1 |
| Tool Diameter | mm | 85 | 100 | 125 | 135 | 135 | 140 |
| Applicable Carrier | ton | 7~12 | 11~16 | 14~18 | 16~21 | 16~25 | 18~26 |

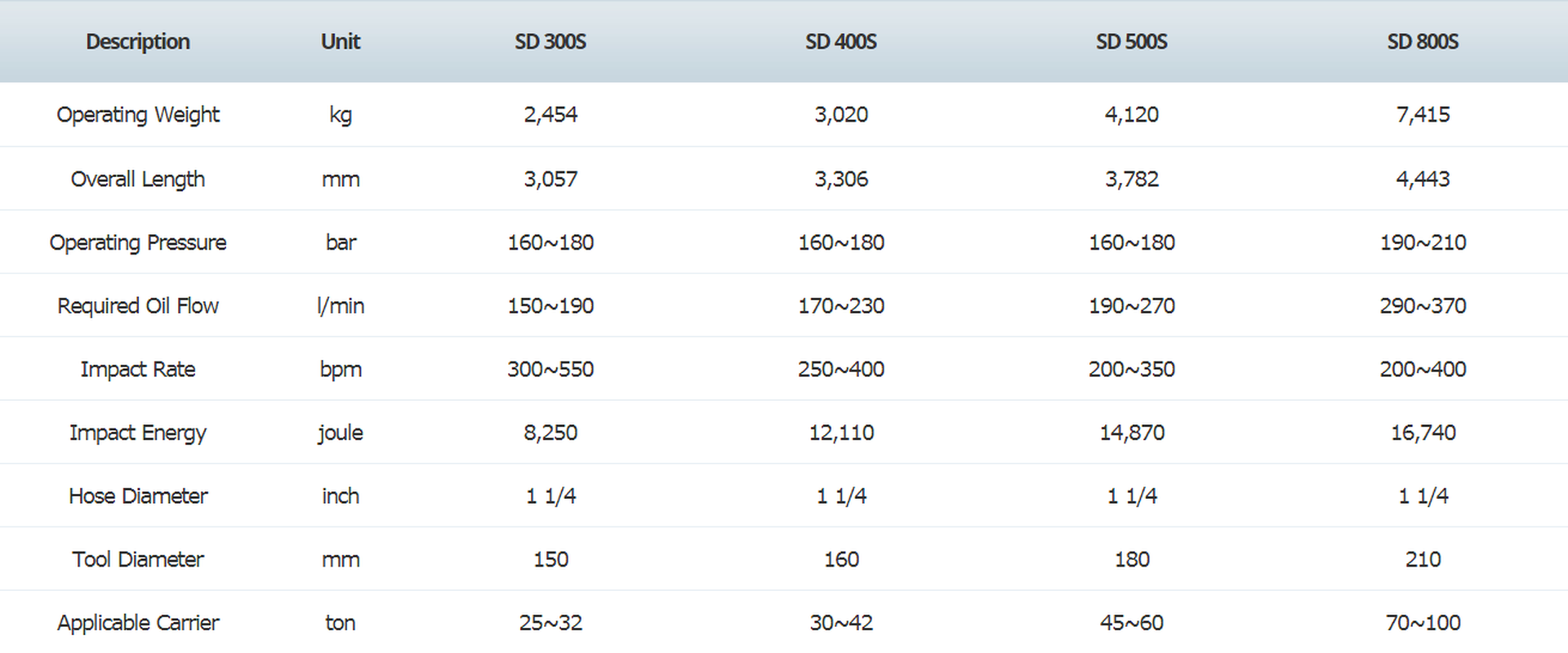

Heavy Duty Range
Swipe or scroll horizontally to compare models →
| Description | Unit | SD 300S | SD 330S | SD 400S | SD 440S | SD 500S | SD 550S | SD 800S |
|---|---|---|---|---|---|---|---|---|
| Operating Weight | kg | 2,454 | 2,890 | 3,020 | 3,140 | 4,120 | 4,075 | 7,415 |
| Overall Length | mm | 3,057 | 2,842 | 3,306 | 2,976 | 3,782 | 3,244 | 4,443 |
| Operating Pressure | bar | 160~180 | 160~180 | 160~180 | 160~180 | 160~180 | 160~180 | 190~210 |
| Required Oil Flow | L/min | 150~190 | 180~240 | 170~230 | 200~260 | 190~270 | 210~290 | 290~370 |
| Impact Rate | bpm | 300~550 | 300~450 | 250~400 | 250~400 | 200~350 | 200~350 | 200~400 |
| Impact Energy | joule | 8,250 | 11,540 | 12,110 | 13,205 | 14,870 | 14,210 | 16,740 |
| Hose Diameter | inch | 1 | 1¼ | 1¼ | 1¼ | 1¼ | 1¼ | 1¼ |
| Tool Diameter | mm | 150 | 155 | 160 | 165 | 180 | 175 | 210 |
| Applicable Carrier | ton | 25~32 | 28~35 | 30~42 | 30~45 | 45~60 | 40~55 | 70~100 |
The above specifications are subject to change without prior notice for improvement.
