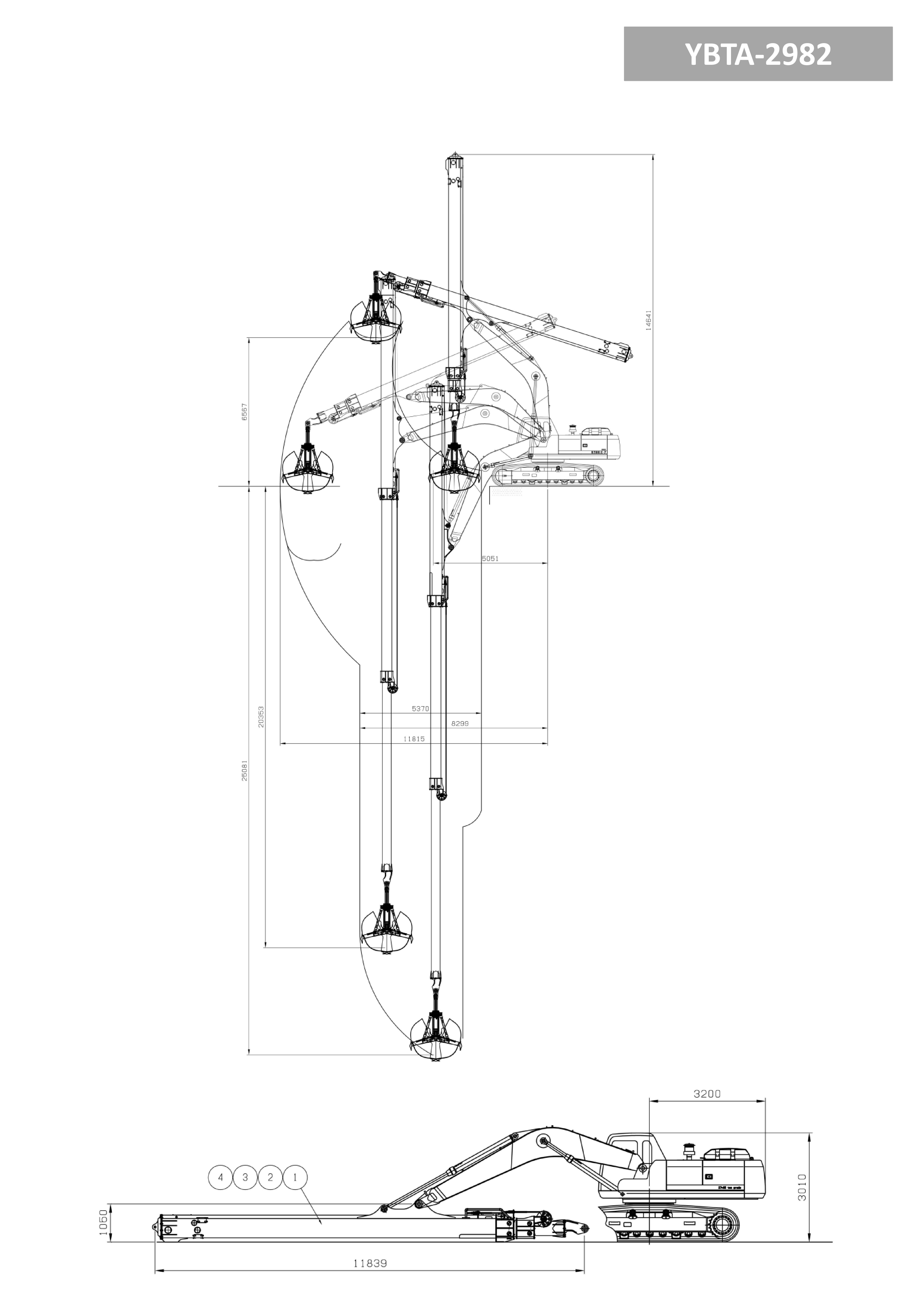

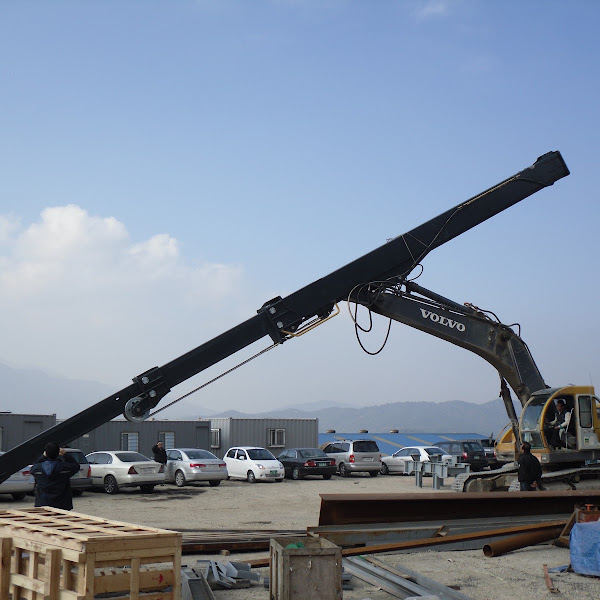

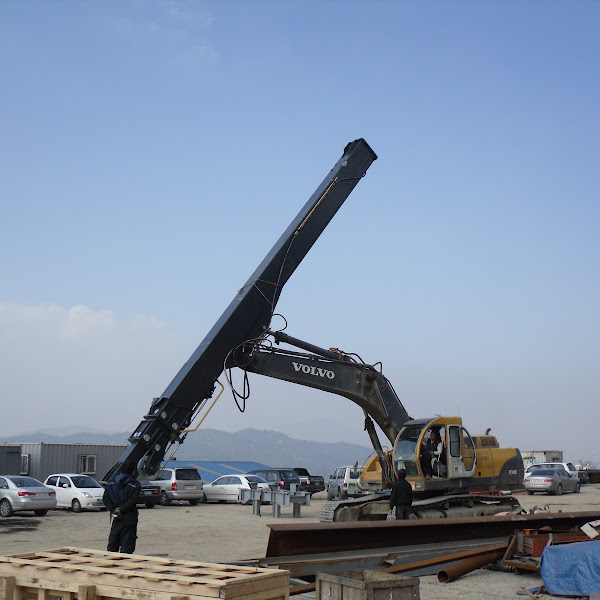

TELESCOPIC ARM
A. EQUIPMENT ; 27~35 TON GRADE
B. CAPACITY
TELESCOPIC ARM LENGTH ; 11839 mm
HEIGHT ; 1050 mm
WIDTH ; 550 mm
SECTION SHAPE ; RECTANGLE TYPE
FEEDING TYPE ; HYDRAULIC CYLINDR + WIRE
STROKE ; 7500 mm + 7500mm
WEIGHT ; ABOUT 5.4 TON
WORKING PULL FORCE (with attatch ) ; 3.5 TON
MAX. PULL FORCE ; 5.5 TON
C. WORKING RANGE
MAX, DIGGING DEPTH ; 25081 mm
MAX, VERTICAL WALL RADIOUS ; 8299 mm
MAX, DUMPING HEIGHT ; 11815 mm
MIN, FRONT SWING RADIOUS ; 6567 mm
MIN, FRONT VERTICAL HEIGHT ; 14641 mm
D. CLANSHELL BUCKET
CAPA. ; 1 m³
WEIGHT ; ABOUT 1.3 TON
ROTATE ; OO 360º
E. THE OTHERS
CLINOMETER
FEED CYLINDER SAFETY VALVE INSTALLATION
CAMERA & LCD MONITER INSTALLATION (OPTION)
WIRE TENSION DEVICE INSTALLATION
FEED CYLINDER SPEED UP VALVE INSTALLATION
ARM SCRAPER INSTALLATION
ARM CLEARANCE MINIMUM DEVICE INSTALLATION
WIRE PROTECT DEVICE INSTALLATION

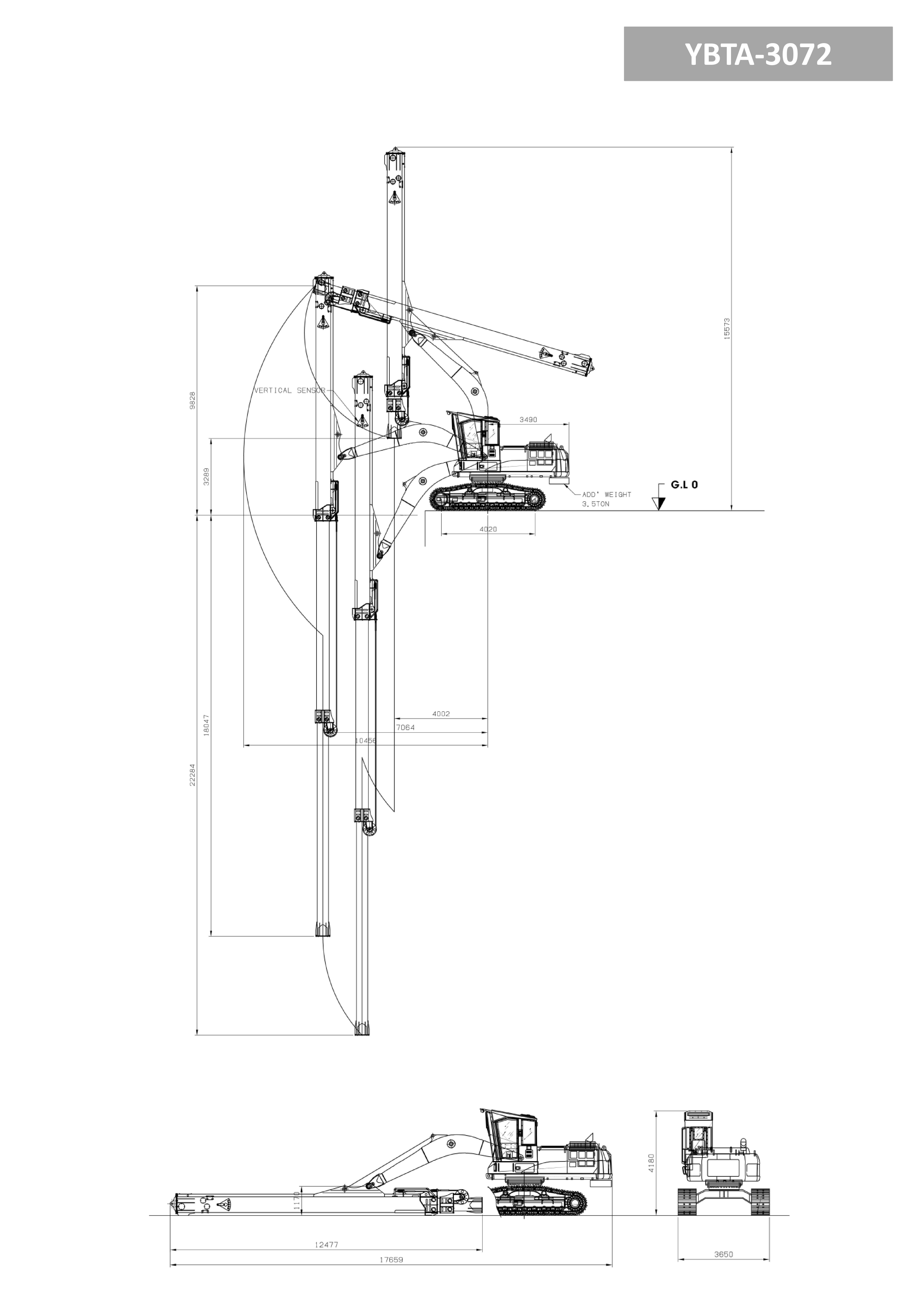

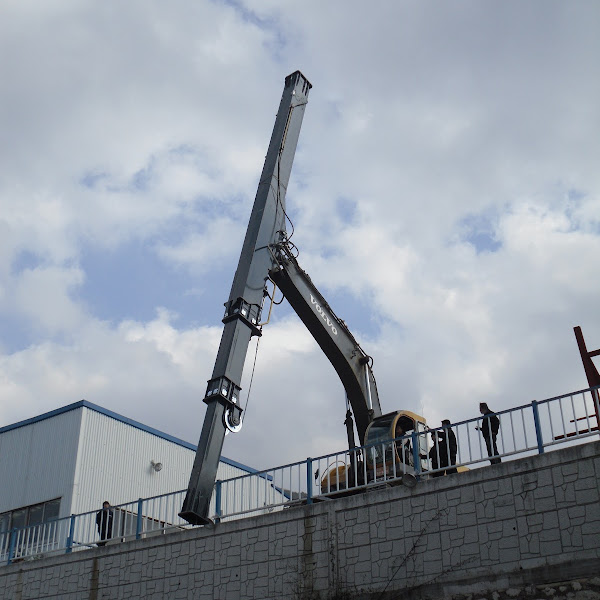

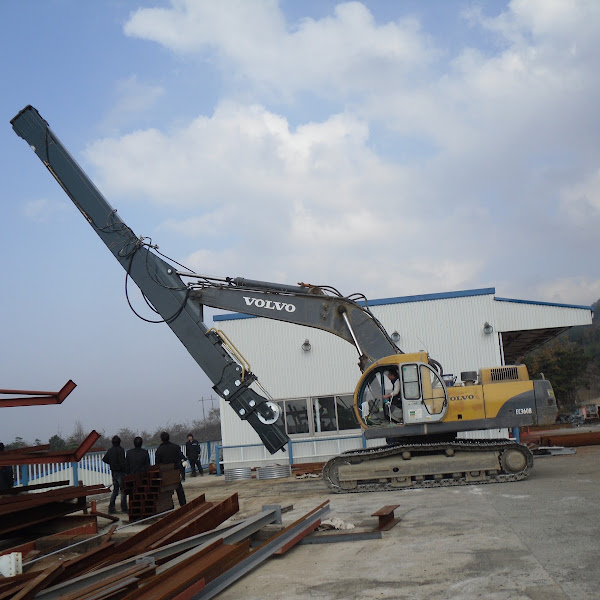

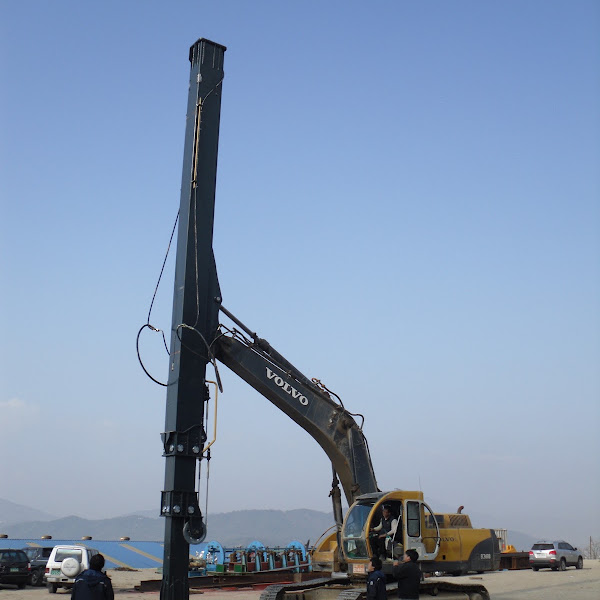

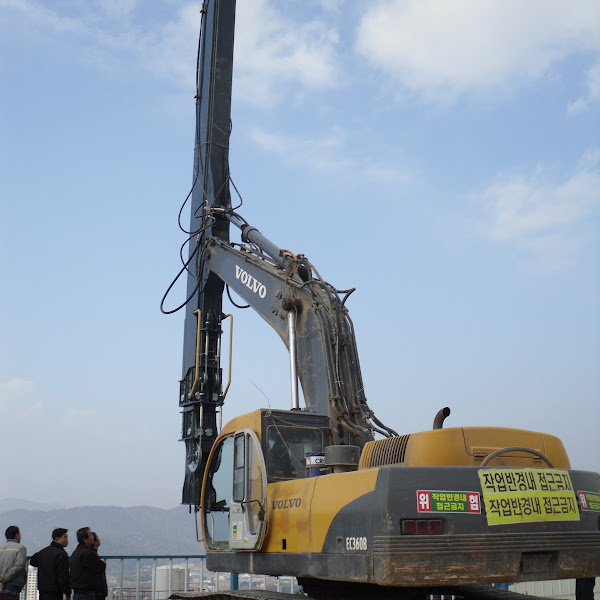

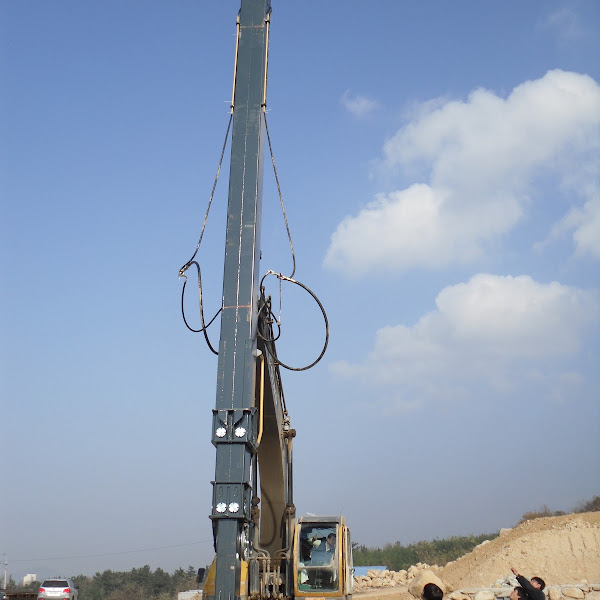

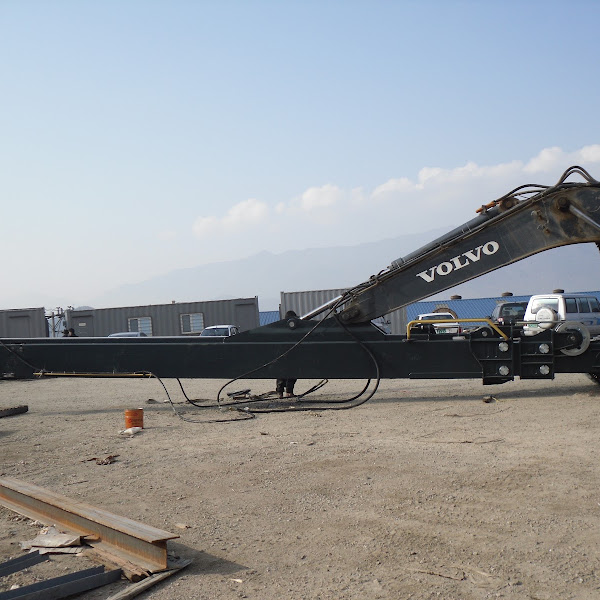

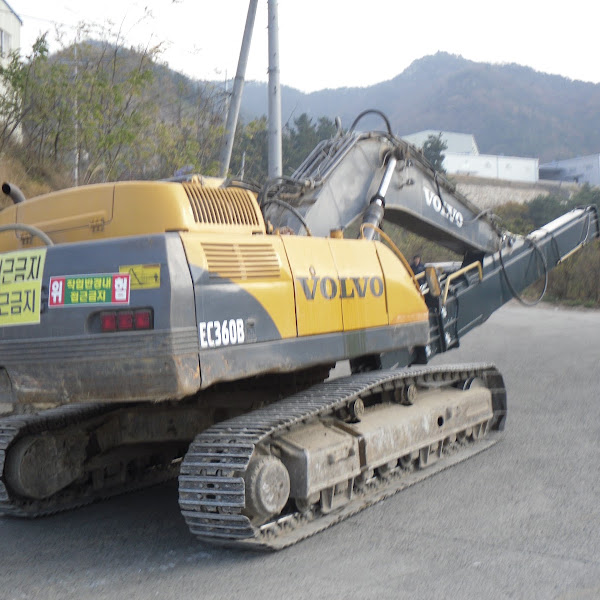

A. EQUIPMENT ; 35 TON GRADE
B. CAPACITY
TELESCOPIC ARM LENGTH ; 12477 mm
HEIGHT ; 1170 mm
WIDTH ; 620 mm
SECTION SHAPE ; RECTANGLE TYPE
FEEDING TYPE ; HYDRAULIC CYLINDR + WIRE
STROKE ; 8000 mm + 8000mm
WEIGHT ; ABOUT 6.5 TON
WORKING PULL FORCE ; 6.5 TON (with attatch)
MAX.PULL FORCE (210 bar) ; 11 TON (with attatch)
RELIEF PRESSURE (PUSH) ; 30 bar
RELIEF PRESSURE (PULL) ; 250 bar
PUSH SPEED ; ABOUT 30 sec
PULL SPEED ; ABOUT 15 sec
C. WORKING RANGE (TO INNER ARM END)
MAX, DIGGING DEPTH ; 22284 mm
MAX, VERTICAL WALL RADIOUS ; 7064 mm
MAX, WORKING RADIOUS ; 10456 mm
MAX, DUMPING HEIGHT ; 9828 mm
PERMISSION VERTICAL ANGLE ; ± 10 °
D. USEING ATTATCH
FILLER (UNDER WATER)
E. THE OTHERS
CLIOMETER INSEALLATION
FEED CYLINDER SAFETY VALVE INSTALLATION
VERITICAL SENSOR INSTALLATION
ARM CLEARANCE MINIMUM DEVICE INSTALLATION
WIRE PROTECT DEVICE INSTALLATION
WIRE TENSION DIVICE INSTALLATION

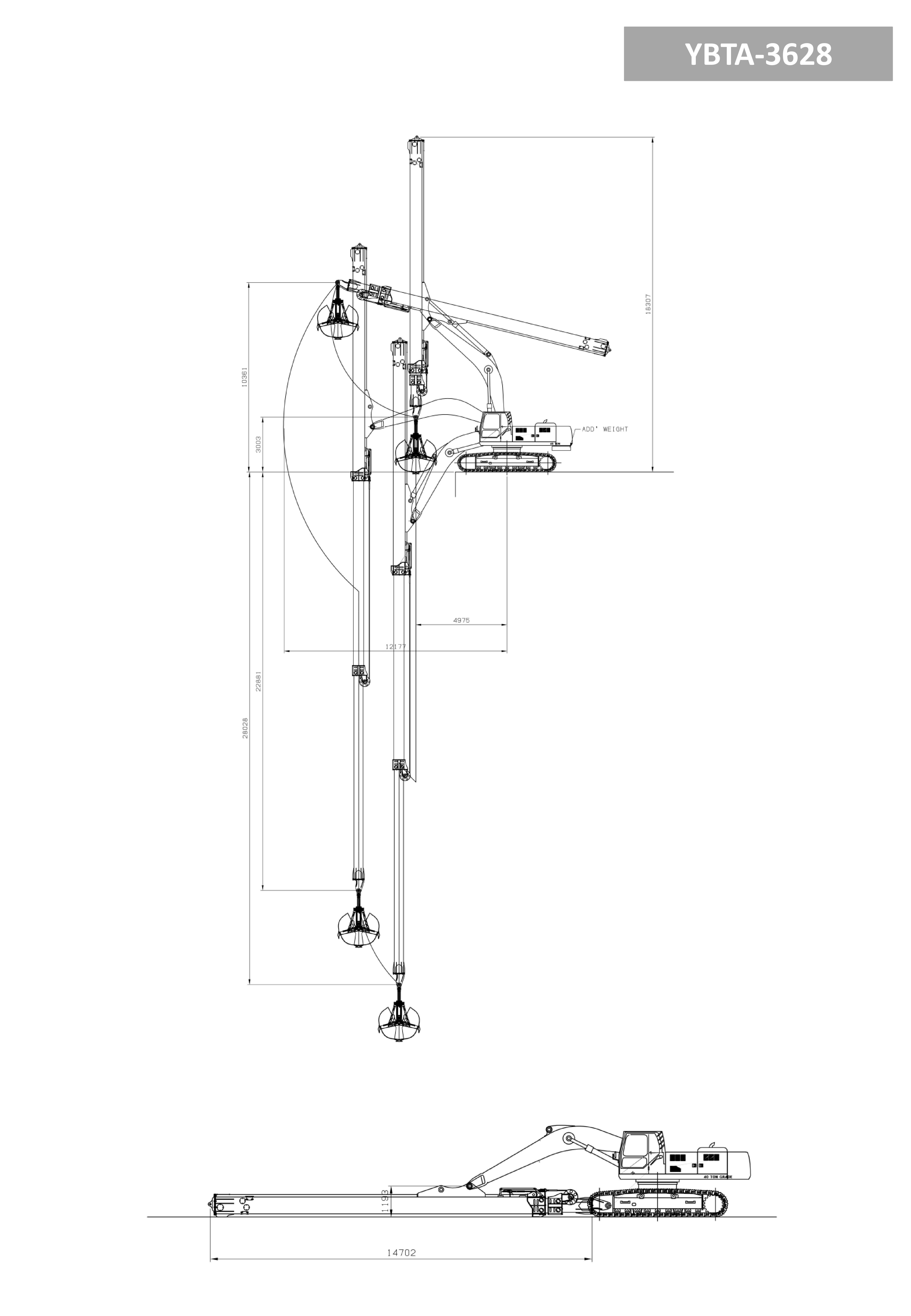

A. EQUIPMENT ; 48 TON GRADE
B. CAPACITY
TELESCOPIC ARM LENGTH ; 15304 mm
HEIGHT ; 1193 mm
WIDTH ; 650 mm
SECTION SHAPE ; RECTANGLE TYPE
FEEDING TYPE ; HYDRAULIC CYLINDR + WIRE
STROKE ; 10000 mm + 10000mm
WEIGHT ; 9.5 TON
WORKING PULL FORCE ; 6.5 TON (with attatch)
MAX.PULL FORCE (210 bar) ; 9.5 TON (with attatch)
C. WORKING RANGE (TO INNER ARM END)
MAX, DIGGING DEPTH ; 28028 mm
MAX, VERTICAL WALL RADIOUS ; 8100 mm
MAX, WORKING RADIOUS ; 12177 mm
MAX, DUMPING HEIGHT ; 10361 mm
MIN. FRONT SWING RADIOUS ; 4975 mm (TO PIN)
MIN. FRONT VERTICAL HEIGHT ; 18307 mm
D. USEING ATTATCH
FILLER (UNDER WATER)
E. THE OTHERS
CLIOMETER INSEALLATION
FEED CYLINDER SAFETY VALVE INSTALLATION
VERITICAL SENSOR INSTALLATION
ARM CLEARANCE MINIMUM DEVICE INSTALLATION
WIRE PROTECT DEVICE INSTALLATION
WIRE TENSION DIVICE INSTALLATION

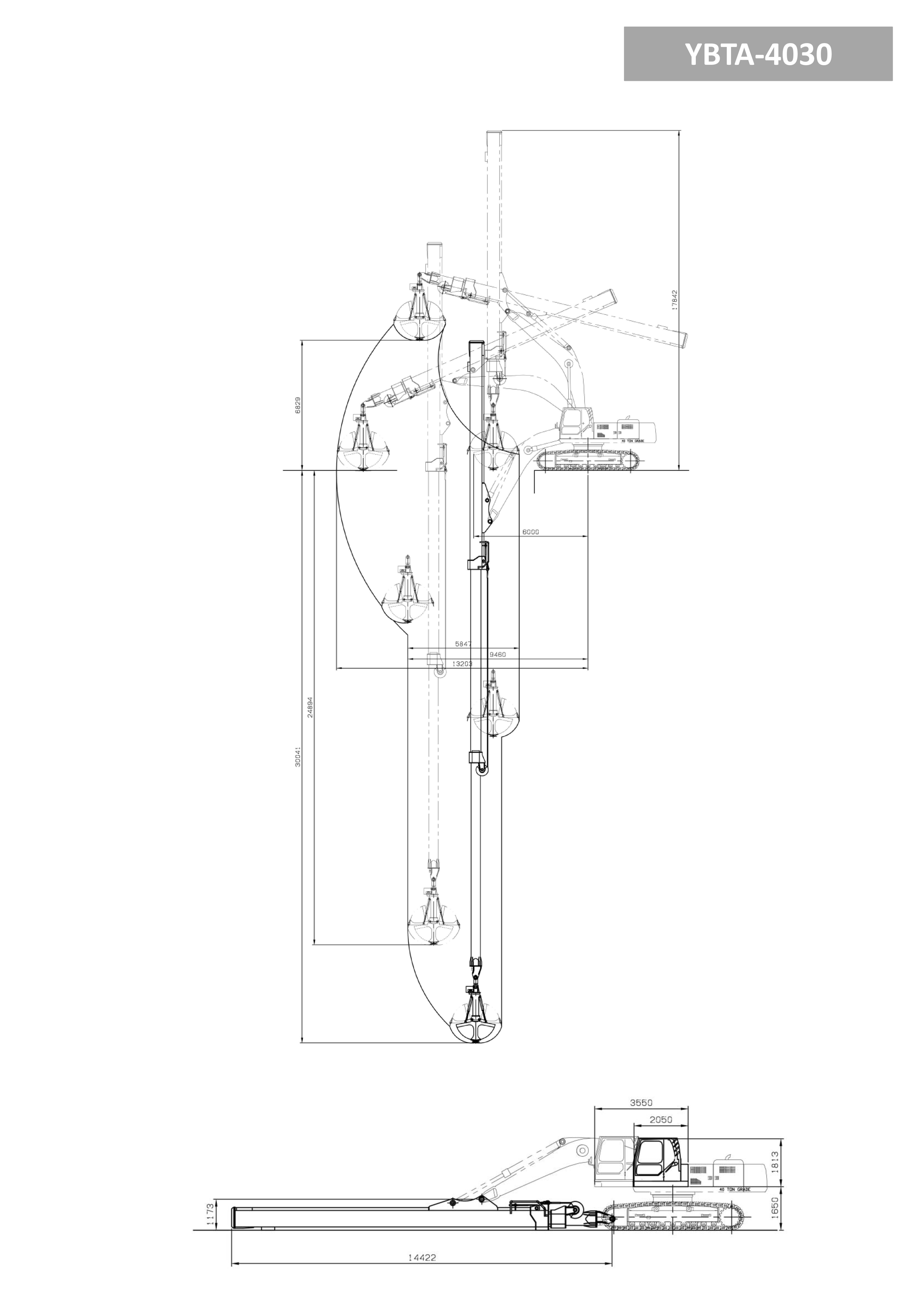

A. EQUIPMENT ; 40 TON GRADE
B. CAPACITY
TELESCOPIC ARM LENGTH ; 14422 mm
HEIGHT ; 1173 mm
WIDTH ; 620 mm
SECTION SHAPE ; RECTANGLE TYPE
FEEDING TYPE ; HYDRAULIC CYLINDR + WIRE
STROKE ; 9500 mm + 9500mm
WEIGHT ; 9.5 TON
WORKING PULL FORCE ; 11 TON
MAX.PULL FORCE ; 17 TON
C. WORKING RANGE
MAX, DIGGING DEPTH ; 30041 mm
MAX, VERTICAL WALL RADIOUS ; 9460 mm
MAX, WORKING RADIOUS ; 13203 mm
MAX, DUMPING HEIGHT ; 6829 mm
MIN. FRONT SWING RADIOUS ; 6000 mm (TO PIN)
MIN. FRONT VERTICAL HEIGHT ; 15342 mm
D. CABIN SUDING
HEIGHT ; 1813 mm
MAX. WIDTH ; 1500 mm
LENGTH ; 2050 mm
SUDING STROKE ; 1500 mm
MAX. LENGTH ; 3550 mm
E. CLAMSHELL BUCKET
CAPA . ; 1.5 m³
WEIGHT ; ABOUT 2.3 TON
MAX, LENGTH ; 2050 mm
MAX, OPEN ; 2600 mm
ROTATE ; OO 360º
F. THE OTHERS
CLIOMETER INSEALLATION
FEED CYLINDER SAFETY VALVE INSTALLATION
CAMERA & LCD MONITER INSTALLATION
WIRE CHECK ELECTRIC SWITCH INSTALLATION
FEED CYLINDER SPEED UP VALVE INSTALLATION
ARM SCRAPER INSTALLATION
ARM CLEARANCE MINIMUM DEVICE

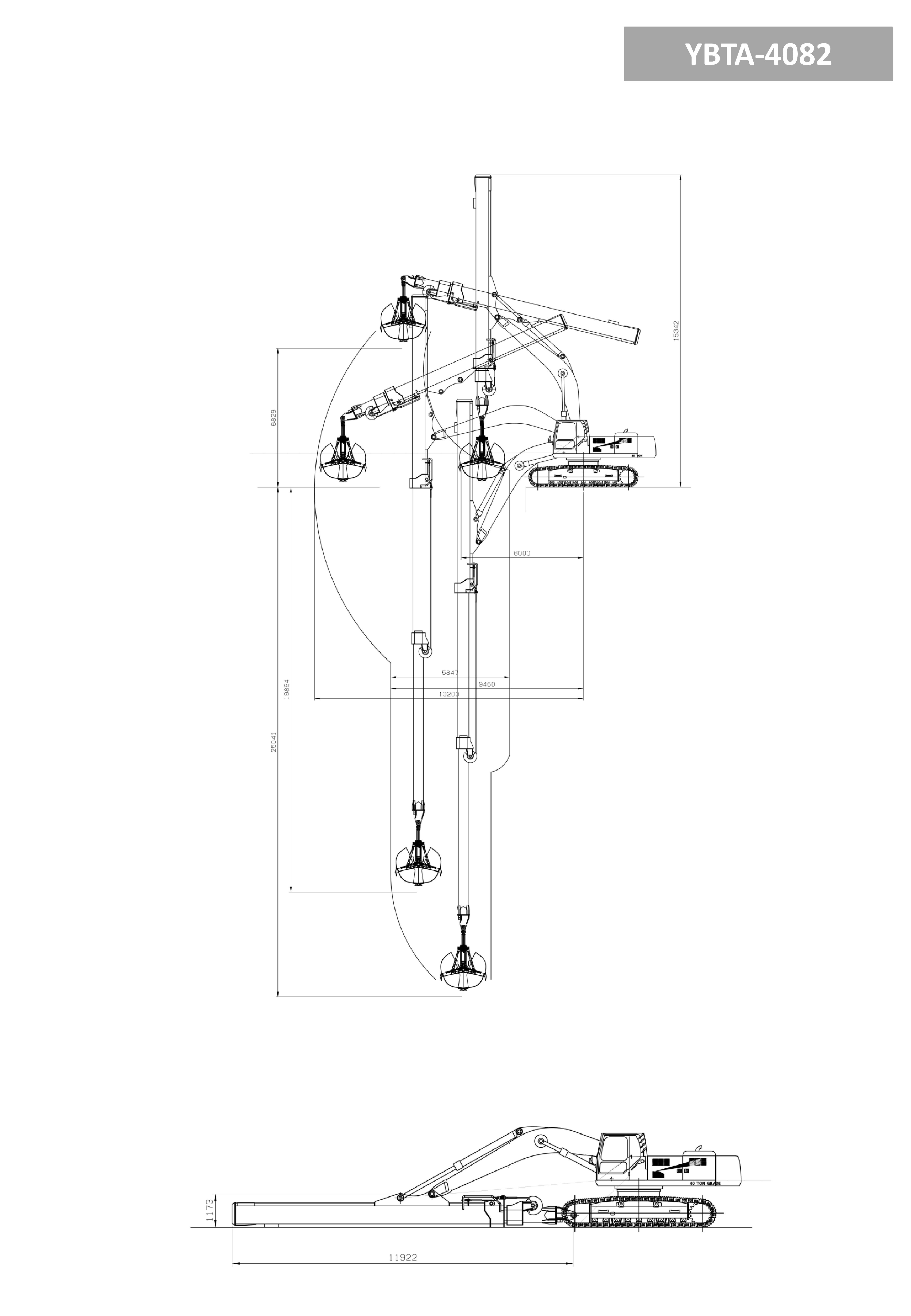

A. EQUIPMENT ; 40 TON GRADE
B. CAPACITY
TELESCOPIC ARM LENGTH ; 11922mm
HEIGHT ; 1173 mm
WIDTH ; 620 mm
SECTION SHAPE ; RECTANGLE TYPE
FEEDING TYPE ; HYDRAULIC CYLINDR + WIRE
STROKE ; 7000 mm + 70000mm
WEIGHT ; 7.5 TON
WORKING PULL FORCE ; 11 TON
MAX.PULL FORCE ; 17 TON
C. WORKING RANGE
MAX, DIGGING DEPTH ; 25041 mm
MAX, VERTICAL WALL RADIOUS ; 9460 mm
MAX, WORKING RADIOUS ; 13203 mm
MAX, DUMPING HEIGHT ; 6829 mm
MIN. FRONT SWING RADIOUS ; 6000 mm
MIN. FRONT VERTICAL HEIGHT ; 15342 mm
D. CLAMSHELL BUCKET
CAPA . ; 2 m³
WEIGHT ; ABOUT 2.3 TON
MAX. HEIGHT ; 2900 mm
MAX. WIDTH ; 1500 mm
MAX, LENGTH ; 2050 mm
MAX, OPEN SIZE ; 2600 mm
ROTATE ; OO 360º
F. THE OTHERS
CLIOMETER INSEALLATION
FEED CYLINDER SAFETY VALVE INSTALLATION
CAMERA & LCD MONITER INSTALLATION
WIRE CHECK ELECTRIC SWITCH INSTALLATION
FEED CYLINDER SPEED UP VALVE INSTALLATION
ARM SCRAPER INSTALLATION
ARM CLEARANCE MINIMUM DEVICE INSTALLATION
WIRE PROTECT DEVICE INSTALLATION
The above specifications are subject to change without prior notice for improvement.
